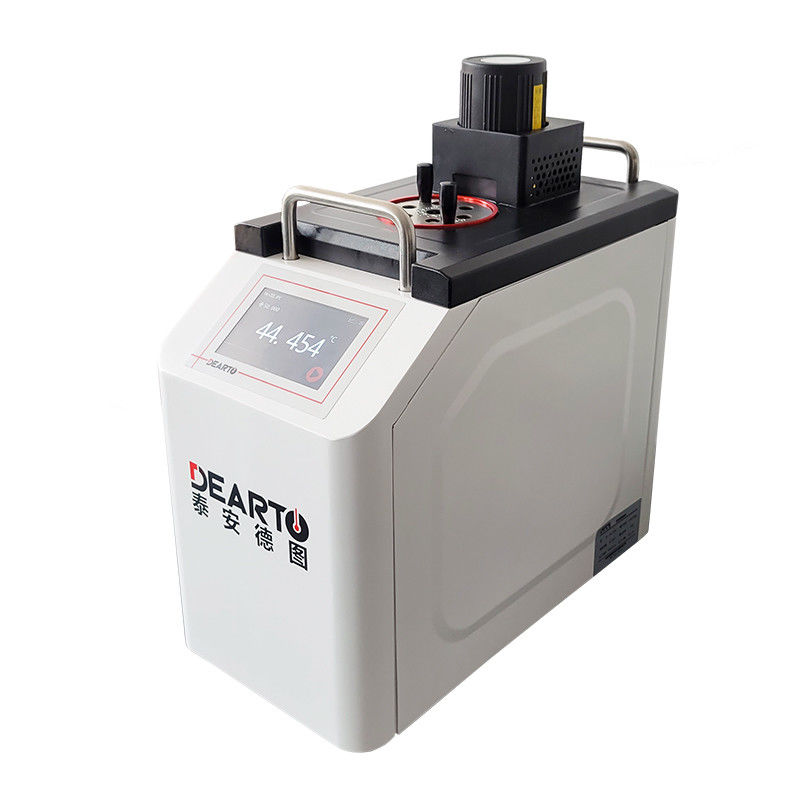

16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil

16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil
16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil

Large Image :  16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTS-180 / 300BG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,000.00 - $4,000.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil

Description
Warranty: 1 Year Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Display Resolution: 0.001℃
Control Method: Touch Power Supply: 110/220V,50/60Hz
Working Medium: Silicone Oil Weight: 16Kg

Product Overview
DTS-BG ultra-portable intelligent thermostatic oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples,working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 0
1.Small and portable, intelligent touch screen control, display temperature difference, fluctuation data;
2.Automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field.
3.Multi-point temperature calibration.
4.Temperature curve display, temperature data is automatically saved to U disk.
5.Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer.

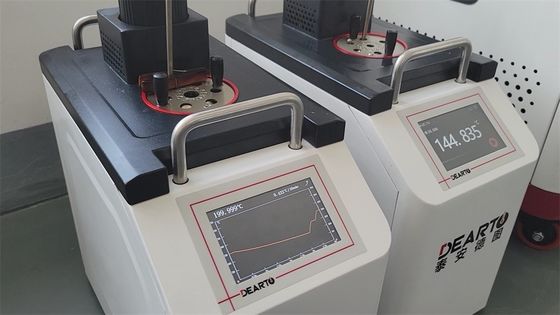

Operation interface
16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 1
Stability running interface
16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 2
Curve display interface
16Kg Capacity Small PID Self-Control Liquid Heating Bath Thermostat with Silicone Oil 3
Setting interface
PRODUCT SPECIFICATIONS
Product name
                                Intelligent micro heated thermostatic oil bath
Model
DTS-180BG
DTS-300BG
Temperature range
60℃~180℃
60℃~300℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation(10min)
≤±0.02℃(60℃) ≤±0.02℃(100℃)≤±0.03℃(200℃)≤±0.035℃(300℃)
Temperature uniformity
 ≤0.01℃ (60℃) ≤0.01℃ (100℃) ≤0.02℃ (200℃)≤0.02℃ (300℃)
Heating rate
6.5℃~11.5℃/min
Cooling rate
1.5℃~5℃/min（Natural cooling）
Work area size
Φ80×280 mm
Dimensions（mm）
430(L)×225(W)×365(H)
Working medium
Silicone oil
Remarks
Flange size can be customized according to customer needs
