Product Details:
|
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM, ODM, OBM | Horizontal Temperature Field Uniformity: | <0.01℃ |
| Vertical Temperature Field Uniformity: | <0.01℃ | Power Supply: | AC 220V/110V 50Hz/60Hz |

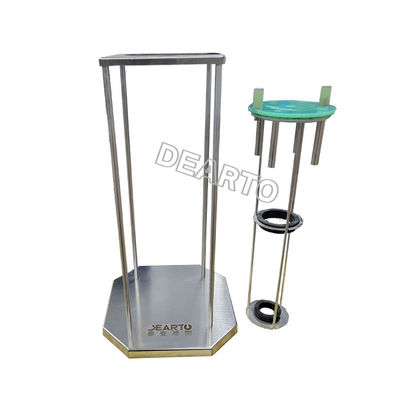

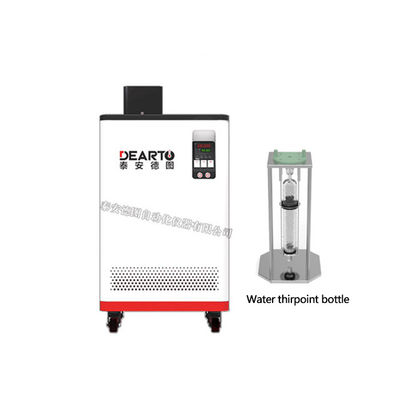

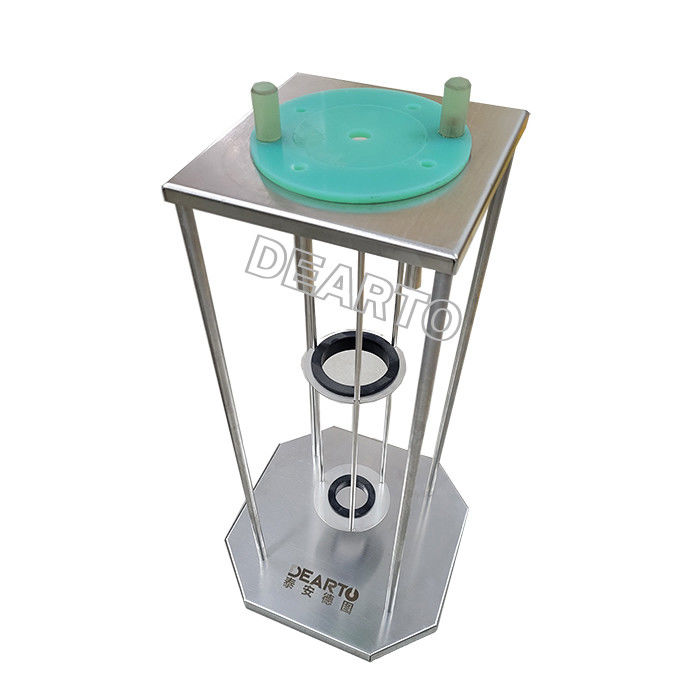

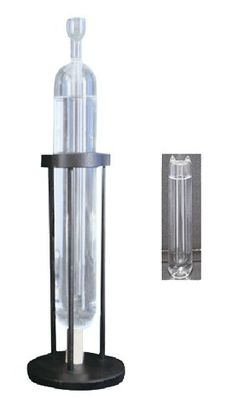

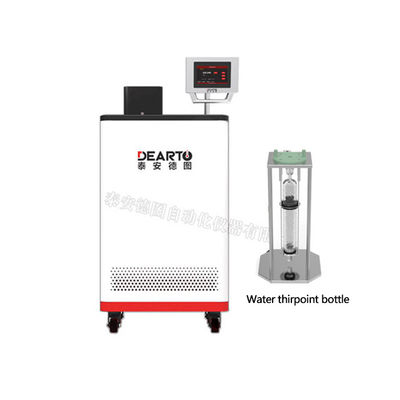

DTF type water triple point bottle automatic freezing and preservation device is an automatic freezing device composed of a refrigeration constant temperature tank and a water three-point point bottle bracket. The imported refrigerator has the characteristics of low noise, good reliability and long life. The high-precision temperature controller achieves full-automatic control of freezing and storage, with compact structure, convenient operation, and intuitive bath temperature reading. It is suitable for measurement, biochemical, petroleum, meteorological, energy, environmental protection, pharmaceutical and other departments and manufacturers of thermometers, thermostats, etc. to detect physical parameters, and can provide constant temperature sources for other experimental research work.
| Product name | Water triple point automatic freezing and preservation device | ||||
| Model | DTF-CT01SG | DTF-01SG | DTF-CT03SG | DTF-03SG | |
| Temperature range | -10℃~105℃ | -30℃~105℃ | |||
| Temperature fluctuation | ±0.005℃/30min | ||||
| Temp. uniformity | Horizontal temp. field | ≤0.01℃ | |||
| Vertical temp. field | ≤0.01℃ | ||||
| Freezing time | 120min | ||||
| Save time | ≥6h | ||||
| Working medium | Antifreeze | ||||
| Work area size | 130×480(mm) | ||||
| Volume | 18.5L | ||||
| Frozen quantity | 1~3(pcs) | ||||
| Ambient temperature | 20℃±5℃ | ||||
| Total power | 2KW | ||||
| Power supply | 220V/50Hz±10% | ||||
| Dimensions | 660×540×1120(mm) | ||||
| Net weight | 90KG | 115KG | |||
