-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support

-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support

Large Image :  -35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTG-140G/150G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,500.00 - $4,000.00/sets
Packaging Details: Carton Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support

Description
Warranty: 1 Year Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Display Resolution: 0.01℃
Stability: ±0.1℃/30min Power Supply: AC 220V/110V 50Hz/60Hz

Product Overview
DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 0
▶ Accurate temperature control and uniform temperature field
▶ Beautiful, portable and lightweight, convenient for on-site verification.
▶ Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
▶ Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
▶ Multi-point calibration interpolation calibration technology for more accurate temperature control
▶ RS-232 interface for data export
▶ Temperature curve, volatility, deviation synchronous display, intuitive reading
Operation interface
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 1
Setting interface
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 2
PID settings interface
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 3
Auto-tuning interface

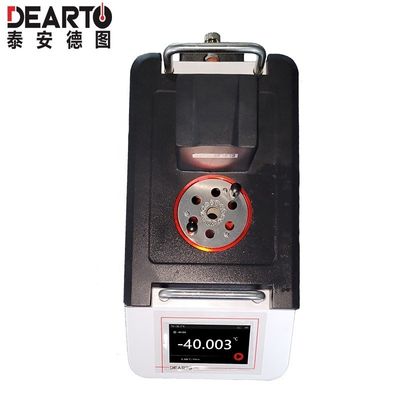

Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 4
-35 150 Deg C Series Constant Temperature Source Calibration Furnace for OEM Support 5
Product Paramenters
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10   When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.8 ℃
Temperature fluctuation
±0.15℃
Well depth
170mm
Dimensions
330 x 170x 320 mm
Power supply
110/220V,60/50Hz
