Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels

Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels
Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels

Large Image :  Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTMC Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6,000.00/sets 1-4 sets
Packaging Details: Carton Packing
Supply Ability: 500 Set/Sets per Month
Contact Now

Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Color: Silver Gray Resolution Ratio: 0.01℃
Shell Material: Alufer +ABS Module Size: 250mm X170mm X70mm
Module Weight: 2kg Power Supply: 12VDC 2A

Products Description

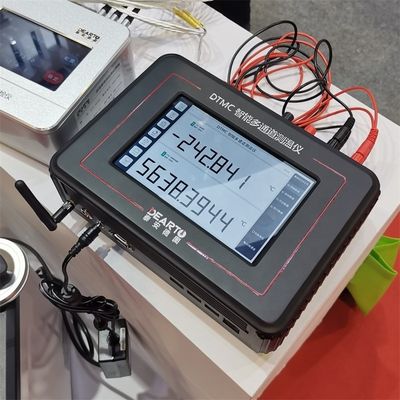

DTMC series intelligent multi-channel thermometer is a multi-channel and multi-function
thermometer based on modular design. The whole series is divided into four configurations: single-channel, two-channel,four-channel,six-channel and eight-channel. Platinum resistance measurement module, thermocouple measurement module or thermistor measurement module can be selected respectively, which have many advantages such as high precision, wide sensor coverage and rich functions.
The product can be connected to the PC terminal or mobile terminal by wired or wireless way, suitable for thermostatic bath temperature field test, thermocouple furnace temperature field test, dry block furnace temperature field test, can be widely used in measurement calibration, scientific experiments and other precision temperature measurement related fields.
Product Function
▶ Support standard platinum resistance(SPRT), industrial platinum resistance(PRT), thermocouple(TC)and thermistor(NTC) and other temperature sensors
▶ Support for the editing and configuration of the platinum resistance and thermistor sensor parameters
▶ The thermocouple channel provides an independent built-in cold-end temperature sensor with a temperature measurement accuracy better than 0.1℃
▶ Thermocouple cooling end compensation provides fixed value, internal automatic compensation and external compensation
▶ Each channel independent sampling, modular design, effectively improve the reliability and adaptability of the apparatus
▶ Each channel can be calibrated and corrected by single point, multipoint, piecewise linear or least squares independently
▶ Provide historical data, statistical data, curve data and other data display forms
▶ Support voltage, resistance, temperature and other data format storage and output
▶ Provide encryption algorithm support, can encrypt the data files, effectively improve the security
▶ Support RS232 and wireless communication mode, can connect to PC or mobile terminal
▶ Provide 8G large-capacity storage space for data storage
▶ Seven-inch industrial-grade color touch-screen display
Product Features
1. Outstanding noise reduction design
Multi-stage anti-aliasing design is adopted, which greatly reduces the noise level of the input channel and greatly improves the signal-to-noise ratio of the measurement results, making the noise level better than 0.1uV.
2. Excellent long-term stability
DTMC series intelligent multi-channel temperature meter adopts the classical ratio measurement principle, built-in reference level
standard resistance, temperature coefficient as low as 0.1ppm/℃, the stability level is better than the general 7-bit semi-digital multimeter.
3. High precision thermocouple cold junction
DTMC series intelligent multi-channel temperature meter uses an independent high-precision digital temperature sensor as the cold end compensation sensor. The distance between the cold end temperature measuring point and the thermocouple connection point is less than 20mm. At the same time, combined with good temperature design, the thermocouple measurement channel can provide reference end compensation with accuracy better than 0.15℃.
4. Perfect parameter editing
DTMC series intelligent multi-channel temperature meter built-in a variety of common thermal resistance, 13 kinds of thermocouple and thermistor calculation formula, convenient connection of various types of temperature sensors.
Users can edit platinum resistance coefficient according to ITS90 and CVD formula, support standard platinum resistance, ordinary platinum resistance. Regular platinum resistors support editing R0, alpha, beta, and delta parameters.
Users can edit thermistor coefficients according to Steinhart-Hart equation.
5. Statistical data analysis
DTMC series intelligent multi-channel thermometer each channel has independent curve display and data analysis functions, users can view the maximum value, minimum value, average value, standard deviation and other statistical data of measurement data in real time. After the measurement starts, the measurement data is automatically saved to a file, and users can browse and analyze the historical data at any time.
6. Data encryption
It can provide encryption algorithm support, encrypt data files, and meet the special requirements for data security in special industries such as national defense and military industries.
7. Wireless LAN
DTMC series intelligent multi-channel thermometer can be connected to tablet or laptop computer through 2.4g wireless network,remote sharing of measurement data, effectively improve work efficiency.
8. Large capacity storage
DTMC series intelligent multi-channel thermometer has built-in 8G large capacity memory, and also supports usb disk storage function, which can easily import data into USB disk. The exported data can be browsed or processed by general tools such as Excel, or imported into special software for data analysis and report generation.
9. Rich and friendly human-computer interaction functions

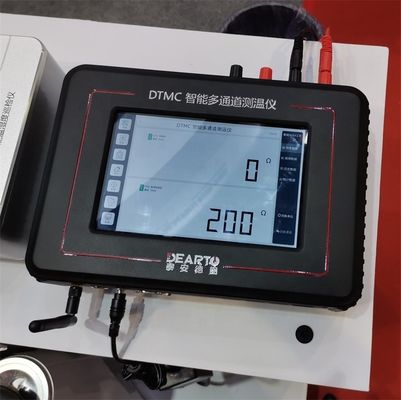

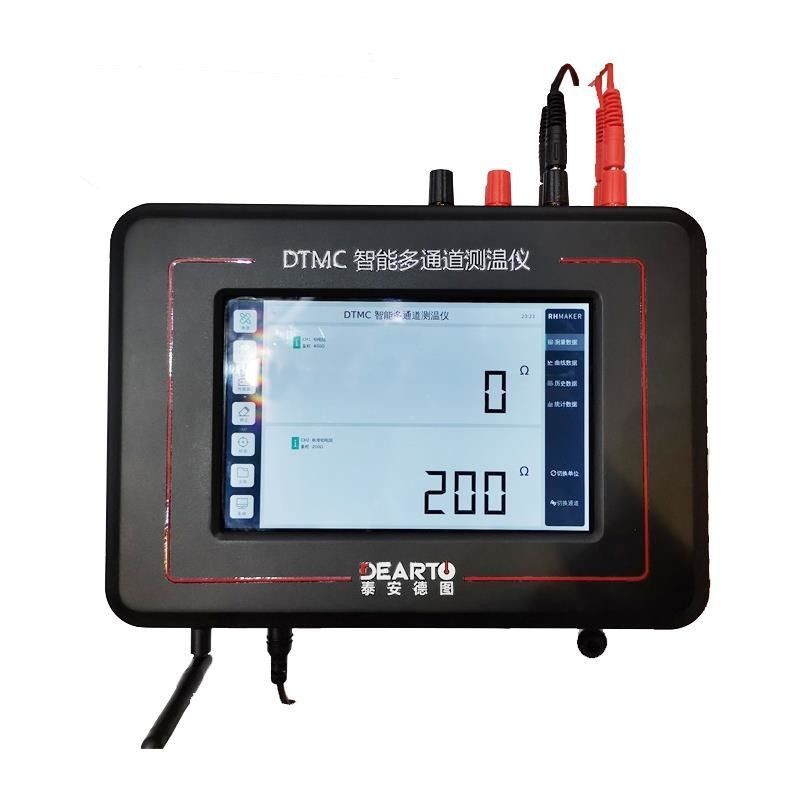

DTMC series intelligent multi-channel thermometer adopts 7 inch touch screen design, providing rich and friendly human-computer interaction interface, operation interface content covers: Channel setting, sensor setting, statistical data display, curve display, unit switch, channel correction, channel calibration, file operation, system setting, etc., without the help of any other peripherals can independently complete the data collection work of the test site.
10. Reliable structural design

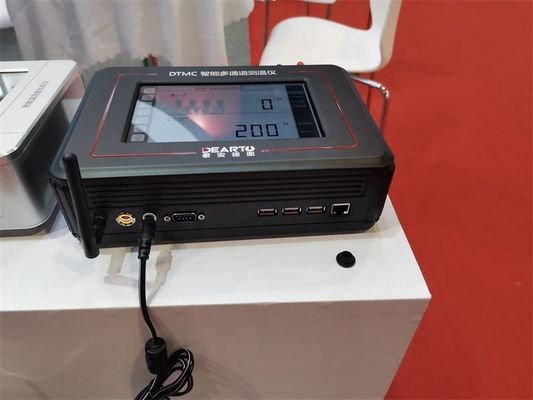

DTMC series intelligent multi-channel thermometers adopt a robust integrated design, in addition to the necessary USB interface and network interface, the overall structure is effectively sealed, can work in high humidity environment for a long time.
Product Paramenters
Channel configuration
Model
DTMC-1
DTMC-2
DTMC-4
DTMC-6
DTMC-8
Channel number
1
2
4
6
8
Channel optional function
Thermocouple
Thermal resistance
Thermistor
Channel technical indicators
Intelligent Data Logger for Measuring Temperature and Resistance in Multiple Channels 0
[1] Accuracy index: ± (ppm reading + ppm range);
[2] Temperature coefficient index: increase the ppm reading per degree beyond (15 to 25) ℃.
General technical indicators
Power requirement
12VDC 2A
Communication interface
RS232 Wireless
Shell material
Alufer +ABS
Module size
250mm×170mm×70mm
Module weight
2kg
Environment
Use
（5~35）℃,（0~85）%rh
Store
（0~70）℃,（0~100）%rh
