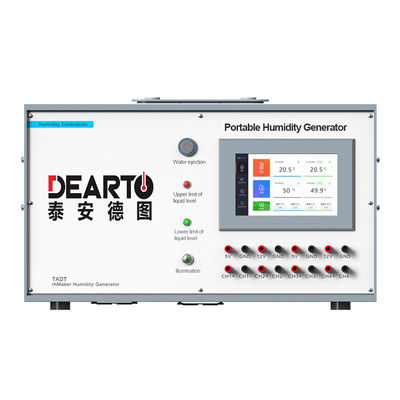

TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration

TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration

Large Image :  TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Certification: ISO9001
Model Number: TADT-G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $16,000.00 - $22,000.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 500 Set/Sets per Month
Contact Now

TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Power: Electronic Generating Range: Humidity 5%RH~95%RH(@23℃)
Maximum Allowance: Temperature ±0.2℃; Humidity ±1.5%RH Uniformity: Temperature 0.2℃; Humidity 0.4%RH
Weight: 20kg Dimension Of Complete Generator: 420mm*450mm*200m

Product Description
TADT is a portable, high-precision temperature and humidity calibration instrument, can meet the temperature and humidity sensor,temperature and humidity transmitter, small temperature and humidity meter and other conventional temperature and humidity measurement instrument measurement and calibration requirements.
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration 0
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration 1
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration 2
Functional characteristics
* Test chamber space up to (3~5) times that of similar products, providing more efficient test conditions
* The test chamber can accommodate various types of in-put cold-mirror-viewer probes for comparison and calibration
* Composite sensor jack design, suitable for various diameter temperature and humidity sensors and transmitters
* Transparent window and lighting design of measuring room to facilitate reading of various small temperature and humidity meters
* Can be calibrated simultaneously (10~15) with small temperature and humidity probes
* Calibrate (3-5) block size digital temperature and humidity meter simultaneously
* The test chamber provides temperature uniformity within 0.1℃℃ in a full range of 5℃~50
* Design of external drying cylinder, desiccant replacement can be operated on-line, convenient and simple
* Design of double-zone drying cylinder, supporting both molecular sieve and discolored silica gel
* Visual display of liquid level and dryer state is beneficial to state monitoring during work
* Provide 4 channel external (0~1) V,(0~5) V and (4~20) mA standard signal inputs
* The instrument has built-in humidity conversion software to facilitate users to convert relative humidity, temperature and dew point temperature
* Support temperature and humidity curve display, easy for users to view temperature and humidity state trend
* 7-inch color LCD touchscreen
Specification
Nominal humidity range
5 %rh~95 %rh (20±3℃)
Nominal temperature range
5℃~50℃
Temperature stability
±0.05℃
Temperature uniformity
≤0.05℃(20±3℃) ≤0.1℃(5~50℃)
Max allowable temperature error
±0.05℃(20±3℃) ±0.1℃(5~50℃)
Humidity stability
±0.2 %RH
Humidity uniformity
≤0.3 %RH(20±3℃) ≤0.5%RH(5~50℃)
Max allowable error of relative humidity
±0.8 RH(20±3℃) ±1.5%RH(5~50℃)
Desiccant
Molecular sieve or discolored silica gel (renewable)
Saturated media
Distilled or deionized water
Cavity Workspace Dimensions
(length × width × height)
Standard TADT-S              160 mm×175 mm×175 mm (appr. 5 L)

Extended TADT-L              280 mm×175 mm×175 mm (appr. 9 L)
Sensor Test Window
Modular design, support customized on demand
Maximum opening diameter of test
60 mm
Maximum number of openings in test
15
Communication interface
RS232
General technical indicators




Power requirements
220VAC±10  50Hz



Power
750W



Temperature range
Use
(5~35)℃



Storage
(0~70)℃


Humidity range
Use
  (0~85)% rh



Storage
  (0~100)% rh


Weight
20kg



Size (length × width × height)
550 mm ×300 mm ×600 mm



Accessories
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration 3

1. Glass + eyelet combination cover

Scope of application: measuring indoor built-in lighting, transparent window to facilitate digital temperature and humidity meter reading, small
holes suitable for inserting various temperature
and humidity sensors, temperature and humidity transmitter probe.
TADT Portable Temperature Humidity Generator For Thermometer And Hygrometer Calibration 4

2. Combined macroporous + pore cover

Scope of application: large holes are suitable for inserting various input cold mirror dew point instrument probes as standard devices,and small holes are suitable for inserting various temperature and humidity sensors, temperature and humidity transmitter probes.

3. Customizable Aluminum alloy instrument case

Easy for users to go out to carry and use.
