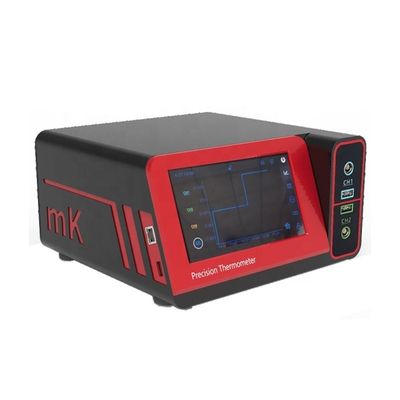

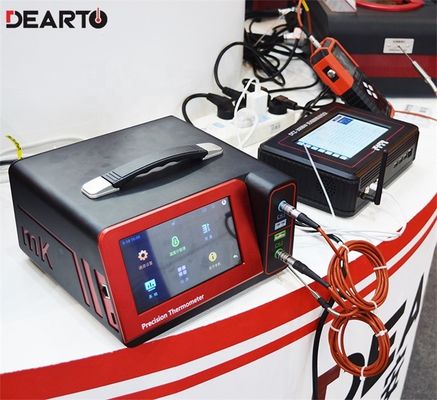

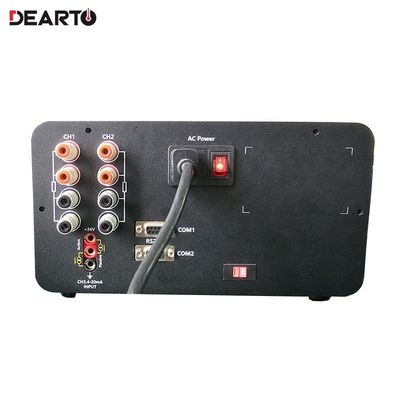

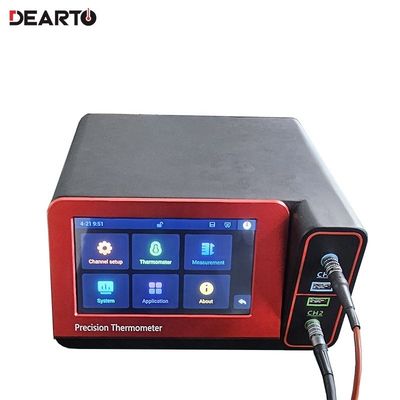

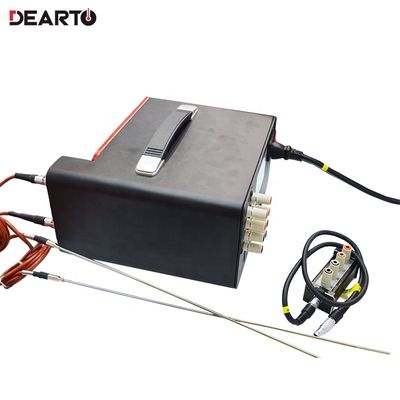

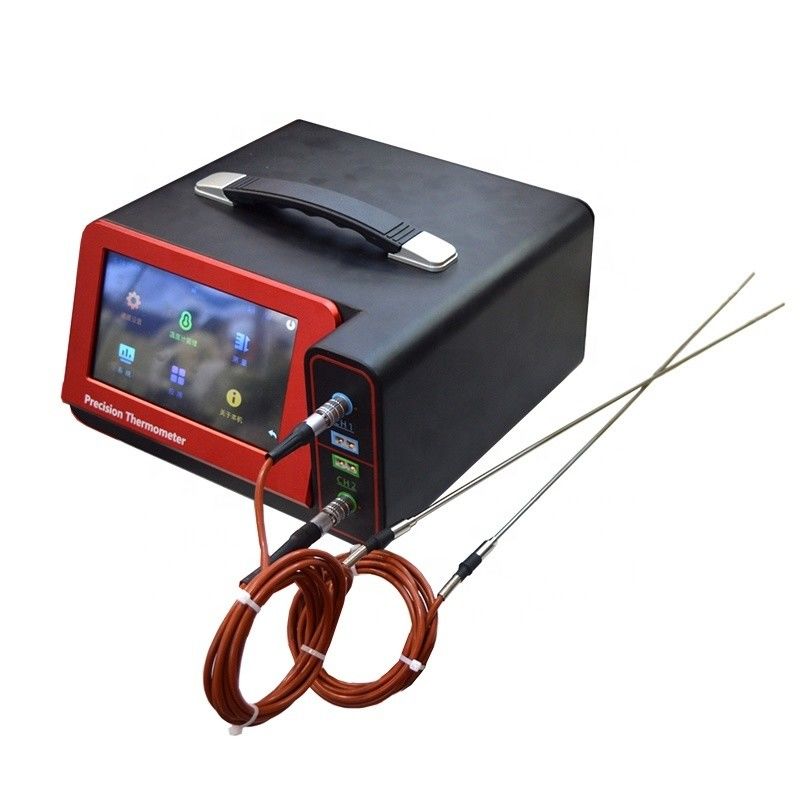

Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring

Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring
Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring

Large Image :  Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTMC-mK301G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,000.00 - $6,000.00/sets
Packaging Details: Carton Packing
Supply Ability: 500 Set/Sets per Month
Contact Now

Intelligent Triple Channel Super Thermometer For Temperature Control And Monitoring

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Resolution Ratio: 0.0001℃ Module Weight: 2.5kg
Power Supply: 110/220V Color: Black

Products Description
DTMC-mK301 high-precision thermometer is a new generation of multi-channel super thermometer specially developed for the field of temperature measurement calibration and precision temperature measurement. It highly integrates high-accuracy electrical measurement technology, intelligent interaction technology, and industry needs, and comprehensively solves the measurement and calibration needs of laboratory and field temperature sensors.
The DTMC-mK301 can measure RTDs, thermocouples, thermistors, temperature transmitters, humidity sensors, DC current and DC resistance, and DC voltage signals. Support ITS-90 temperature scale and ITC60751 standard, built-in thermal conversion software,support sensor parameter management and intelligent sensor management function, in electric power, petrochemical, measurement,metallurgy, biology, pharmaceutical, scientific research work has a wide range of uses, it is ideal for temperature measurement calibration field.
Functional characteristics
▶ Support double standard platinum resistance(SPRT), double standard thermocouple(STC);
▶ Support for the editing and configuration of the parameters of TC,PRT and thermistor sensor;
▶ Support resistance (Pt / Cu / Ni) (Pt 25 / Pt 100 / Cu X / NiX);
▶ Support for thermocouple (K / N / J / E / T / R / S / B / We3 / We5);
▶ Support for thermistor (0-400K);
▶ Support temperature transmitter (0-20 mA / 4-20 mA);
▶ Provide historical data, statistical data, curve data and other data display forms;
▶ Support voltage, resistance, temperature and other data format storage and output;
▶ The RTD supports automatic current switching, eliminating the EMF thermal potential error;
▶ RTD supports two-line, three-line and four-line sensors;
▶ Support for SCPI communication protocol (RS232 / WLAN);
▶ Provide 8G large-capacity storage space for data storage
▶ 7-inch industrial-grade color touch-screen display
Product Paramenters
Number of channel
3 input channels (CH 1 / CH2 / CH3)
Resolution
0.0001℃
Accuracy
7ppm(For SPRT at 0℃)
Sampling rate
up to 1S once
Temperature sensor
Resistance (Pt / Cu / Ni) (Pt 25 / Pt 100 / Cu X / NiX);
Thermocouple (K / N / J / E / T / R / S / B / We3 / We5);
Thermistor (0-400K);
Temperature transmitter (0-20 mA / 4-20 mA)
Data storage
Built-in 8G storage space,can be connected to an external U disk
Operation display
7 inch HD touch screen
Communication protocol
RS232 / WLAN
Overall size
270mm(L) x 260mm(W) x 142mm(H)
Weight
2.5Kg
