Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size

Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size

Large Image :  Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Certification: IOS9001
Model Number: DTL Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,000.00 - $3,000.00/sets
Packaging Details: Bubble wrape & Wooden Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size

Description
Warranty: 1 Year Customized Support: OEM, ODM
Power: Electronic Furnace Inner Size: 40mm*600mm
Color: White Power Supply: 220VAC/50Hz

Products Description

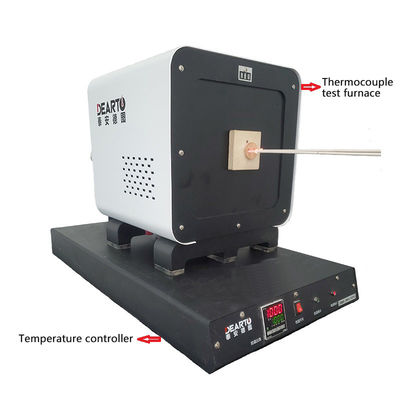

DTL series thermocouple verification furnace is a temperature field constant temperature equipment suitable for verification of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. This series of products has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national verification regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Product Paramenters
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 0

DTL-600G Low-cost metal thermocouple calibration furnace

* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:within 30mm of the effective working area,the temperature difference between any two points is not more than 0.5℃,the radius is within 14mm,and the temperature difference between any two points of the same section is not more than 0.25℃.
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 1

DTL-600BG Precious metal thermocouple calibration furnace

* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:The highest temperature point deviates from the geometric
center of the furnace:≤20mm, Temperature gradient:≤0.4℃/10 mm.
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 2

DTL-300G Short thermocouple calibration furnace

* Furnace inner size:40 mm x 300 mm
* Temperature range: 300℃~1200℃
* Temperature field index:the center of the temperature field deviates from the geometric center≤10mm,the axial temperature gradient: ≤0.4℃/10 mm
DTL-T Thermocouple annealing furnace
* Furnace inner size:φ40mmx1000mm
* Scope of use:Thermocouple annealing
* Temperature field index:one end of the temperature field is less than 100mm from the furnace mouth,and the uniformity of the temperature field of 400mm is less than±20°C
* Dimensions:1010×305×365(mm)
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 3
Patent & Software copyright certificate
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 4
Patent certificate of thermocouple calibration furnace
Base Metal Thermocouple Constant Temperature Inspecting Furnace 40mm*600mm Inner Size 5
Software copyright certificate of thermocouple calibration furnace
