Highly NTC Thermistor Automatic Validation Detection System with Customized ODM Support

Large Image : Highly NTC Thermistor Automatic Validation Detection System with Customized ODM Support

Product Details:

Place of Origin:	Shandong, China
Brand Name:	DEARTO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$100.00/sets >=1 sets
Packaging Details:	Carton Packing
Supply Ability:	20 Set/Sets per Month

Contact Now

Highly NTC Thermistor Automatic Validation Detection System with Customized ODM Support

Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Power Supply:	AC 110/220V	Certificate:	ISO9001

System Overview

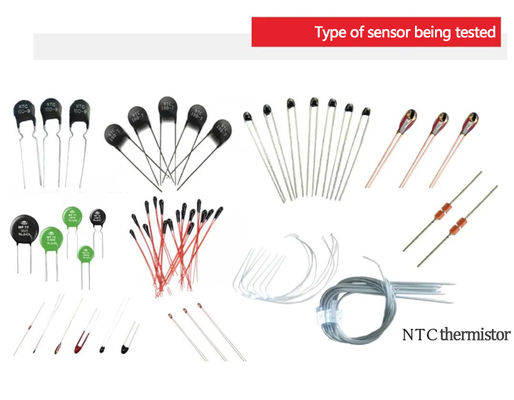

NTC is the abbreviation of Negative Temperature Coefficient in English. The resistance value of NTC thermistor decreases with increasing temperature. Using this feature, it can be made into temperature measurement,temperature compensation and temperature control components, and can be made into power-type components to suppress the surge current of the circuit. Thermistors have a wide range of uses in production and life. In order to better test the thermistor,Taian Dearto has developed the DTZ-NTC thermistor automatic detection system.

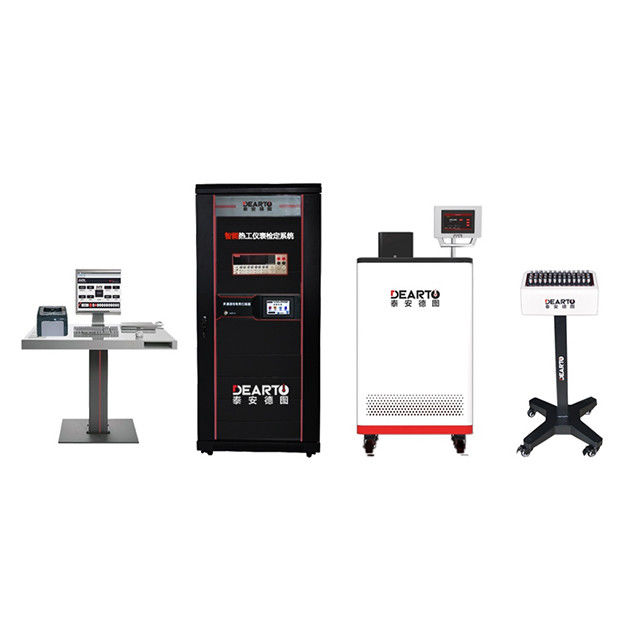

The DTZ-NTC thermistor automatic detection system is mainly used for automatic verification/calibration of various thermistor sensors. The system is controlled by a computer with multi-channel low-potential scanners, digital multimeters, constant temperature oil (water) tanks and other equipment, realizing NTC thermistor data acquisition, data processing, report generation,printing, and data storage fully automated testing equipment.

Software Features

1. The system software is compatible with windows7, windows8, windows10 and other operating platforms, mouse click operation,convenient and quick; professional, easy-to-use, strong operability, open interface and compatible with supporting equipment of different manufacturers.

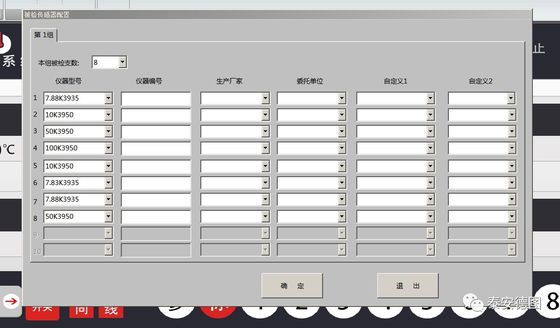

2. The system software can realize the thermistor multi-component group verification (as shown in the figure below)

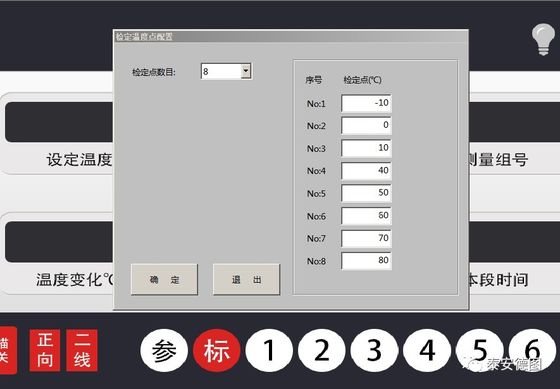

3. Test temperature points can be set up to 8 different temperature points, to meet the requirements of the test

4. Can be carried out at the same time a variety of different ratios of thermistor test (as shown in the figure below)

5. Real-time view of temperature control curve (as shown below)

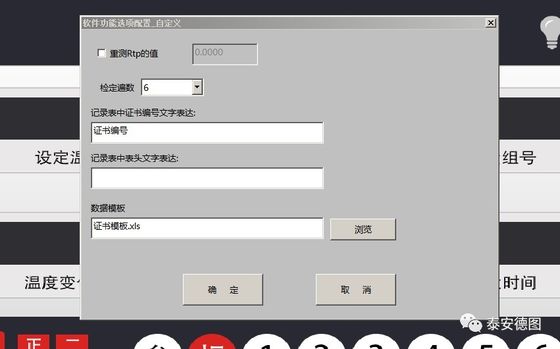

6. The software can customize the record table title to meet the needs of users

7. Test data collection times can be changed according to test requirements (as shown below)

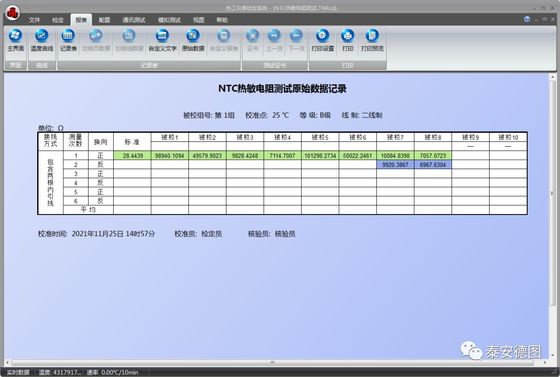

8.The software has a professional, rich report output function: automatically generate verification data record form,verification certificate or verification result notice, all forms, certificates can be exported and displayed in Excel,convenient for customers to operate. Form, certificate format can be designed according to customer requirements.
