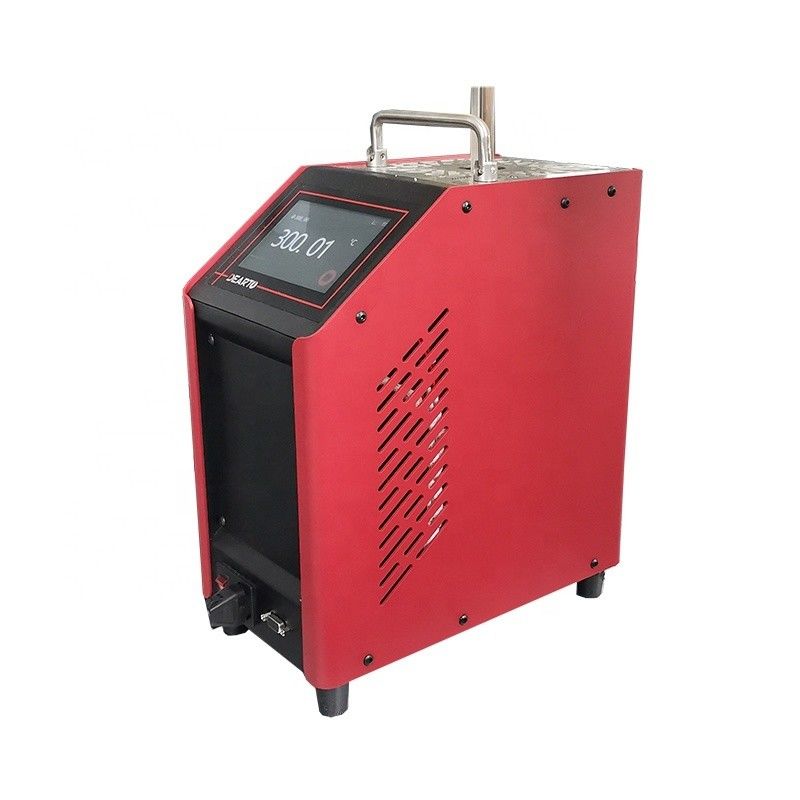

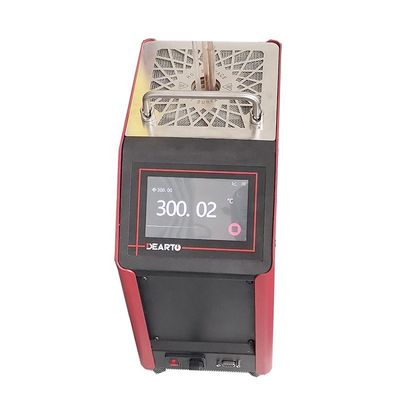

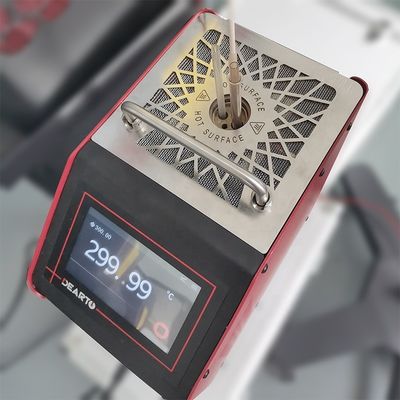

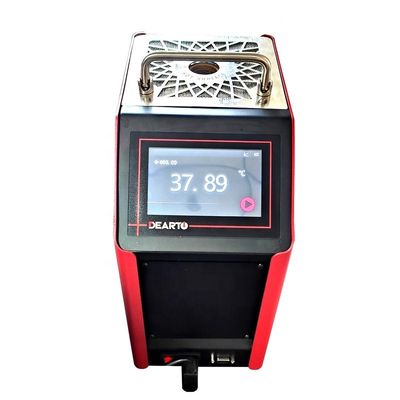

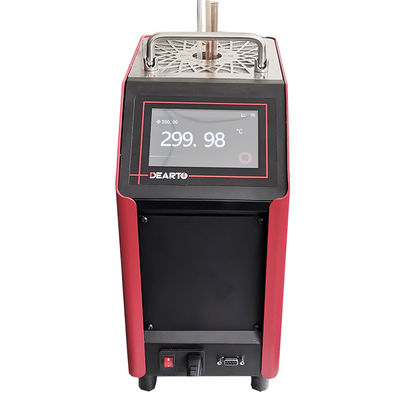

Accurate Calibration with Touch Screen on 110/220VAC Dry Block Temperature Calibrator

Large Image : Accurate Calibration with Touch Screen on 110/220VAC Dry Block Temperature Calibrator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Dearto
Certification:	ISO9001
Model Number:	DTG-1000G / 1200G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2,500.00 - $3,000.00/sets
Packaging Details:	Carton Packing/Customizable aluminium alloy portable case
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Accurate Calibration with Touch Screen on 110/220VAC Dry Block Temperature Calibrator

Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Display Resolution:	0.1℃	Stability:	±0.1℃/30min
Dimension Of Box Body:	310165360	Control Method:	Touch
Power Supply:	110/220VAC

Product Description

DTG series portable intelligent dry block furnace, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 300° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.

Functional characteristics

- Accurate temperature control and uniform temperature field
- Beautiful, portable and lightweight, convenient for on-site verification.
- Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
- Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
- Multi-point calibration interpolation calibration technology for more accurate temperature control
- RS-232 interface for data export
- Temperature curve, volatility, deviation synchronous display, intuitive reading

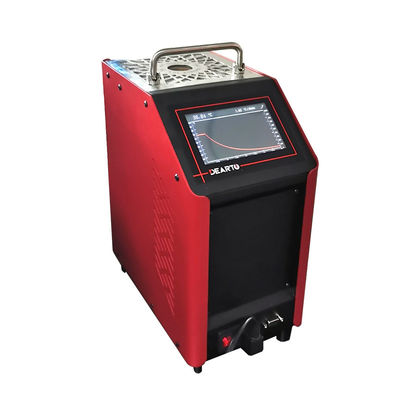

Operation interface

Product Paramenters

High temperature portable intelligent dry block furnace
Model	DTG-800G	DTG-1000G	DTG-1200G
Temperature range	300℃~800℃	300℃~1000℃	300℃~1200℃
Control style	Touch screen
Display resolution	0.1℃
Temperature fluctuation	0.2℃/min
Radial uniformity	≤±0.2℃
Axial uniformity	≤1.0℃ from bottom up to 30mm
Standard hole diameter(mm)	φ6.5,φ12 When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Deep well	200mm
Dimensions(mm)	310×165×360
P	1800W
Power supply	AC110/220V,60/50Hz
