Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DT-ACG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6,000.00/units 1-2 units
Packaging Details: Carton Packing
Supply Ability: 1000 Unit/Units per Month

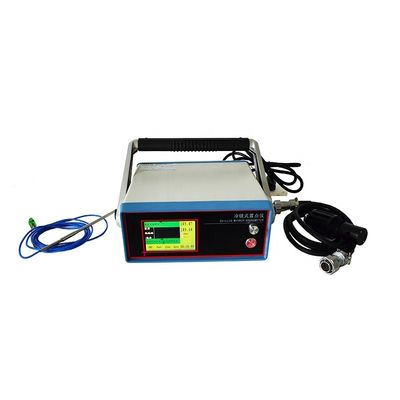

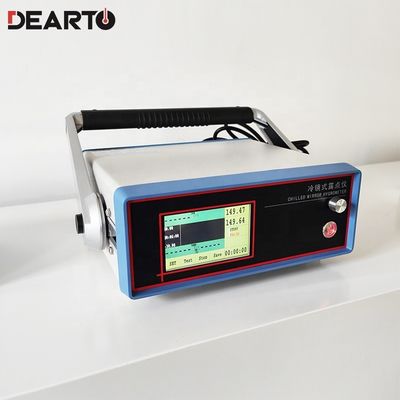

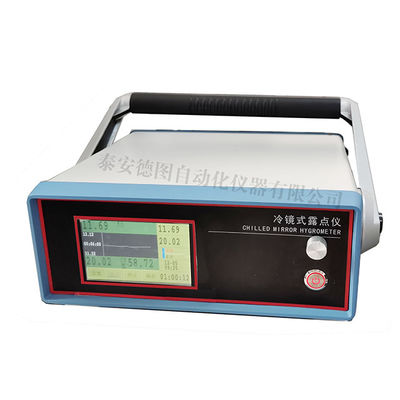

OEM Support High Accuracy Chilled-Mirror Dew-Point Hygrometer 110/220VAC Power Supply

Description
Warranty: 1 Year Customized Support: OEM
Power Supply: 110/220VAC,50/60Hz

Product Description

The principle of cold mirror is based on its physical definition and is a recognized standard of humidity measurement.Cold mirror dew point instrument has high precision, without drift, long life and good repeatability.
The mirror surface of this cold glass dew point instrument is gilded, and the photoelectric measuring room is made of excellent corrosion resistance to ensure accurate measurement data and adapt to harsh working conditions.

 Scope of application
As a standard instrument for humidity dew point detection, the cold mirror dew point instrument has a wide range of applications, such as measurement and detection, scientific research, military aerospace, pharmaceutical tobacco, industrial production and other fields.

Function and Feature

The whole-process curve is displayed in real time to record the test time

Touch screen operation, Chinese interface, easy operation

Automatic balancing system, with a short measurement time

Mirror contamination self-detection function, manual way of cleaning the mirror

Data storage, query, and printing capabilities

Long-term stability, good reproducibility, you can do online analysis

The user can do single-point or multipoint calibration without software operation

Technical indicators



Temp scale range

-20℃ ~ + 95℃ (optional)

Accuracy:

±0.2℃ (optional ±0.1℃)

Dew-point temperature sensor:

Temperature sensor:

-40℃ ~ + 60℃

Precision:

±0.1℃; resolution: 0.01℃

Repeatability:

±0.05℃

Refrigeration mode:

Secondary semiconductor Palpaste refrigeration

Signal output:

220VAC,50/60Hz; power: 60W

Operating temperature:

-20~50℃; Humidity: 95%

Service life:

Permanent free calibration
