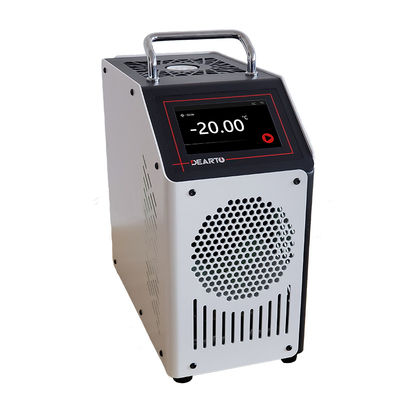

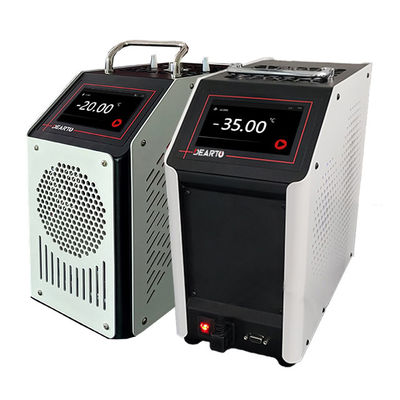

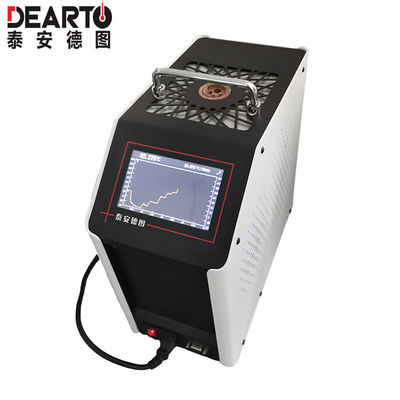

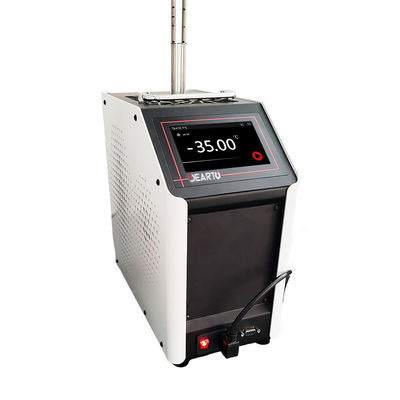

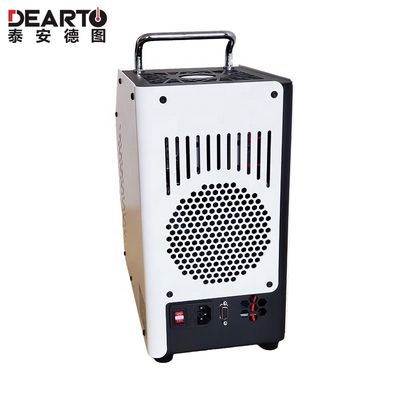

Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer

Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer

Large Image :  Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTG-140G/150G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,500.00 - $4,000.00/units
Packaging Details: Carton Packing
Supply Ability: 1000 Unit/Units per Month
Contact Now

Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer

Description
Warranty: 1 Year Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Display Resolution: 0.001℃
Stability: ±0.1℃/30min Dimension Of Box Body: 280*165*280
Power Supply: 110/220VAC Weight: 9kg

Product Overview
DTG low temperature portable intelligent dry block furnace, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 0
Operation interface
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 1
Setting interface
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 2
PID settings interface
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 3
Auto-tuning interface

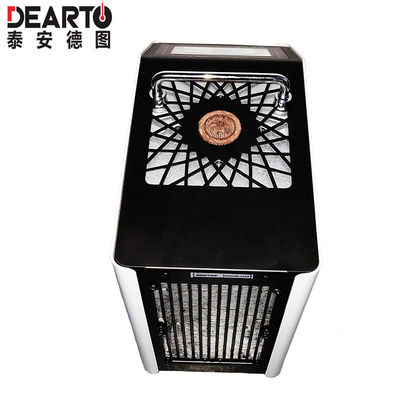

Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 4
Versatile and Easy-to- Portable Calibrator for Thermocouple Thermistor or Thermometer 5
Product Paramenters
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10   When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤±0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.8 ℃
Well depth
170mm
Dimensions
330 x 170 x 320 mm
Power supply
110/220V,60/50Hz
