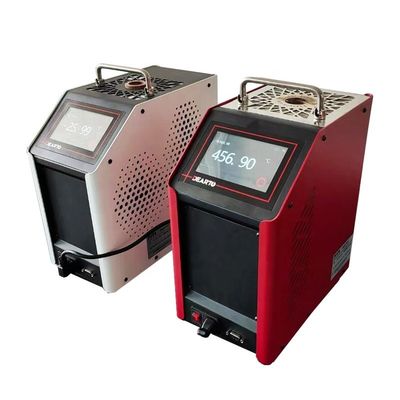

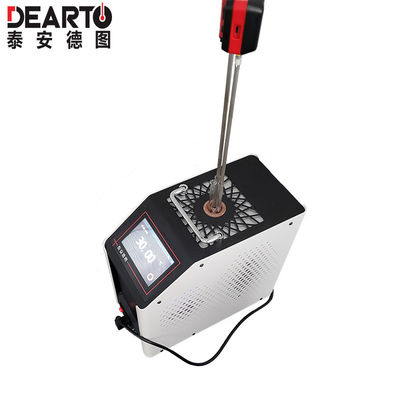

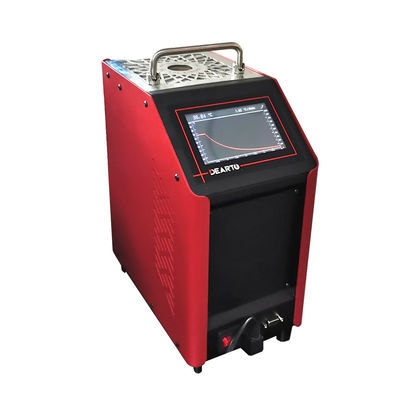

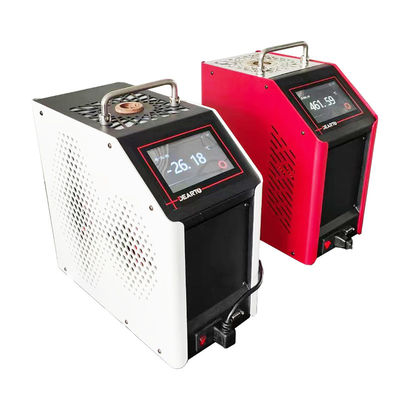

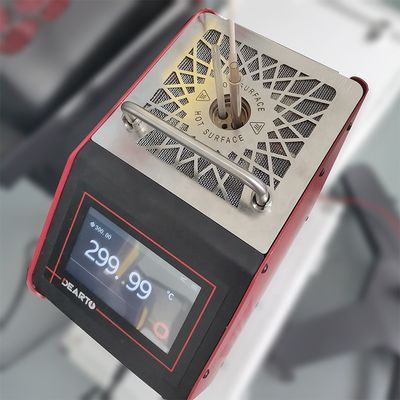

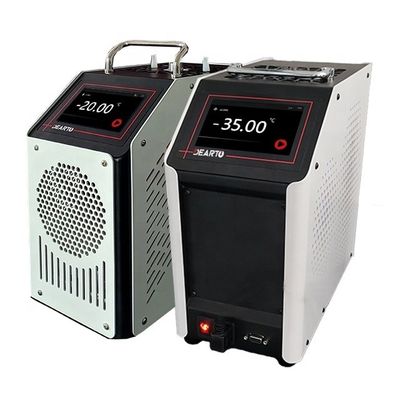

9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration

9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration
9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration

Large Image :  9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration

Product Details:
Place of Origin: Shandong, China
Brand Name: Dearto
Certification: ISO9001
Model Number: DTG Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,300.00 - $3,000.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Unit/Units per Month
Contact Now

9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Display Resolution: 0.01℃ Stability: ≤±0.2℃
Color: White / Red Weight: 9kg

Product Description
DTG series portable intelligent dry block temperature calibrator, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from -35° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.
Functional characteristics
9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 0
Operation interface
9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 1
9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 2
9kg Capacity DTG Series Dry Well Type Furnace for Accurate Temperature Calibration 3
Product Paramenters
Low temperature portable intelligent dry block calibrator
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10   When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤0.2℃
Axial uniformity
Within 40mm from the bottom of the well ≤0.8℃
Temperature fluctuation
±0.15℃
Well depth
170mm
Dimensions
330x 170 x 320 mm
Power supply
110/220V,60/50Hz
                                        Medium temperature portable intelligent dry block furnace
Model
DTG-450G
DTG-660AG
DTG-660BG
Temperature range
50℃~450℃
50℃~660℃
50℃~660℃
Control style
Touch screen
Display resolution
0.01℃
Temperature fluctuation
±0.2℃
±0.1℃
Radial uniformity
≤0.3℃
≤0.15℃
Axial uniformity
Within 40mm from the bottom of the well ±1.0℃
Within 40mm from the bottom of the well ±0.5℃
Deep well
170mm
Standard hole diameter(mm)
φ4.5,φ6.5,φ8,φ10
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions(mm)
285×170×335
Power supply
AC 110V/220V,60Hz/50Hz
                                              High temperature portable intelligent dry block furnace
Model
DTG-1000G
DTG-1200AG
DTG-1200BG
Temperature range
300℃~1000℃
300℃~1200℃
300℃~1200℃
Control style
Touch screen
Display resolution
0.1℃
Temperature fluctuation
±0.2℃
±0.4℃
±0.2℃
Radial uniformity
≤0.35℃
≤0.5℃
≤0.35℃
Axial uniformity
Support customization
Standard hole diameter(mm)
φ6.5, φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support
customization)
Deep well
170mm
Dimensions(mm)
310×165×360
P
2200W
Power supply
AC 110V/220V,60Hz/50Hz
