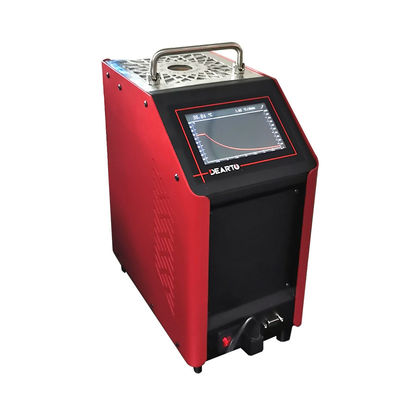

Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace

Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace
Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace

Large Image :  Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTG- G Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,500.00 - $3,500.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace

Description
Warranty: 1 Year Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Stability: ±0.1℃/30min
Display Resolution: 0.01℃ Dimension Of Box Body: 310*165*360
Control Method: Touch Power Supply: 220/110VAC
Weight: 9kg

Product Description
DTG series portable intelligent dry block temperature calibrator, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.
Functional characteristics
Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace 0
Operation interface
Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace 1
Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace 2
Touch Screen Controlled 50 to 1200 deg C Dry Block Well Type Temperature Calibrator Furnace 3
Product Paramenters
                                        Medium temperature portable intelligent dry block furnace
Model
DTG-300G
DTG-450G
DTG-660G
Temperature range
50℃~300℃
50℃~450℃
50℃~660℃
Accuracy of sensor
± 0.4%·t;Support deviation correction
Control style
Touch screen
Display resolution
0.01℃
Radial uniformity
≤±0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.5℃(50℃~300℃)
Within 30mm from the bottom of the well ≤1.0℃(300℃~660℃)
Temperature fluctuation
≤±0.15℃
Well depth (mm)
160
Standard hole diameter(mm)
φ4.5,φ6.5,φ8,φ10
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions (mm)
285(L) x170(W) x335(H)
P
800W
1200W
Power supply
AC 110V/220V,60Hz/50Hz
                                              High temperature portable intelligent dry block furnace
Model
DTG-800G
DTG-1000G
DTG-1200G
Temperature range
300℃~800℃
300℃~1000℃
300℃~1200℃
Control style
Touch screen
Accuracy of sensor
± 0.4%·t;Support deviation correction
Display resolution
0.01℃
Radial uniformity
≤±0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤1.0℃
Temperature fluctuation
≤±0.2℃
Standard hole diameter(mm)
φ6.5,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support
customization)
Well depth (mm)
200
Dimensions(mm)
310×165×360
P
1800W
Power supply
AC 110V/220V,60Hz/50Hz
