Product Details:
|
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM, ODM, OBM | Display Resolution: | 0.001℃ |
| Control Method: | Touch | Power Supply: | 220/110V,50/60Hz |
| Working Medium: | Silicone Oil / Antifreeze /Dehydrated Alcohol | Net Weight: | 20kg Around |

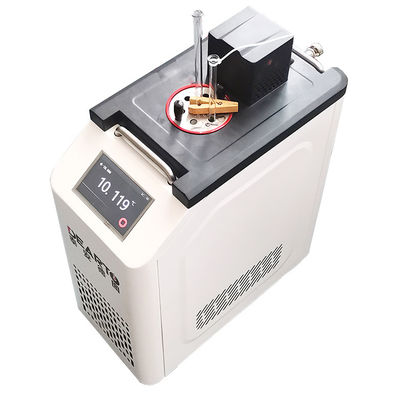

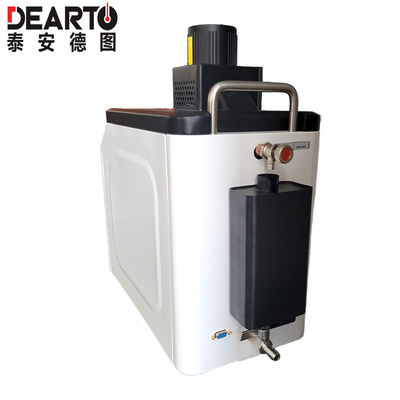

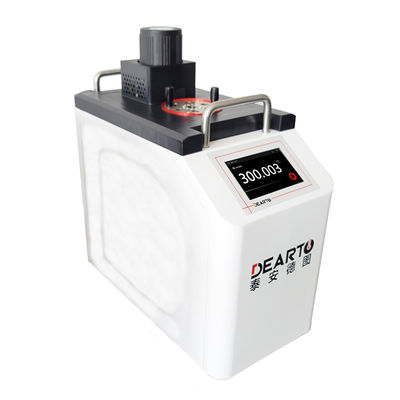

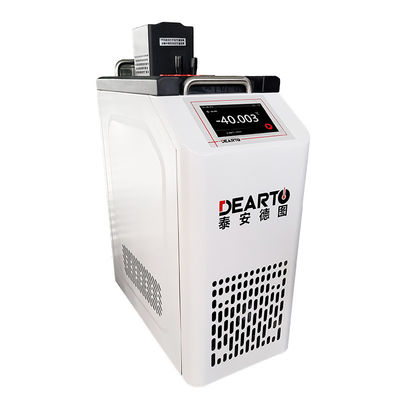

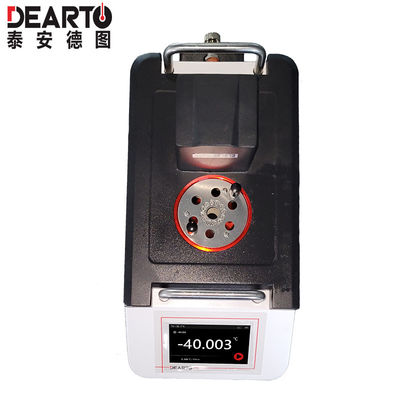

DTS-BG ultra-portable intelligent thermostatic bath is a high-precision automatic temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system, intelligent PID adjustment to achieve automatic temperature control. The groove is compact, lightweight, easy to carry and durable. It is suitable for field verification / calibration of temperature sensors such as industrial thermal resistance, low temperature thermocouple, sheathed thermocouple, working glass liquid thermometer, standard mercury thermometer, bimetallic thermometer, pressure thermometer and so on.
1. small size, easy to carry.
2. intelligent touch screen design, support multi-touch.
3. can display temperature deviation and fluctuation data in real time.
3. automatic subsection temperature control, fast heating "zero" overshoot.
4. microcirculation technology, the temperature field is uniform and stable.
5. support multi-point temperature calibration, temperature sensor can be segmented multi-point correction.
6. temperature curve real-time display.
7. temperature data is automatically saved to the U disk.
8. has overheating protection, heating limit function, safe and reliable.
9. have RS-232 communication interface, can connect to the upper computer.
| Product name | Intelligent heat thermostatic micro bath | Intelligent refrigeration thermostatic micro bath | |

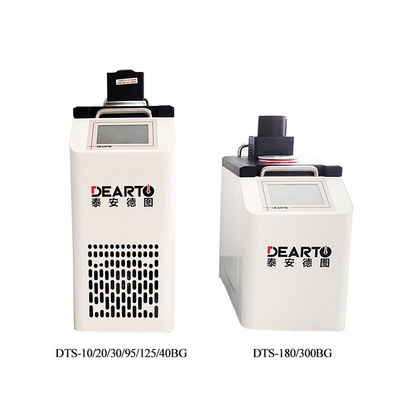

| Model | DTS-300BG | DTS -20BG | DTS -40BG |
| Temp range | 60℃~300℃ | -20℃~150℃/180℃ | -40℃~95℃/125℃/150℃/180℃ |
| Control mode | Touchscreen | ||
| Temp fluctuation | ±0.02℃/10 min(100℃) | ±0.02℃/10 min(0℃)
| |
| Temp uniformity | ≤0.02℃(100℃) | ≤0.02℃(0℃)
| |
| Rate of heating | 6.5℃~11.5℃/ min | ||
| Display resolution | 0.001℃ | ||
| Work area dimensions | Φ80×280(mm) | ||
| Dimensions | 420×215×400(mm) | 500×220×600(mm) | 500×220×600(mm) |
| Working medium | Silicone oil | Special media | Dehydrated alcohol / Special media |
| Remarks | Flange dimensions customized to customer requirements | ||
