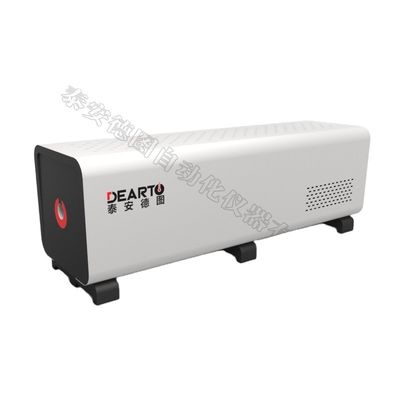

220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace

220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace

Large Image :  220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace

Product Details:
Place of Origin: China
Brand Name: Dearto
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,400.00 - $3,500.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace

Description
Warranty: 12 Months Customized Support: OEM
Product Name: Thermocouple Verification Furnace Power Supply: 220V 50HZ
Measurement Range: 300-1200℃ Model: DTL-600 Series

Products Description
DTL series thermocouple verification furnace is a temperature field constant temperature equipment suitable for verification of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. This series of products has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national verification regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Product Paramenters
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 0

DTL-600G Low-cost metal thermocouple calibration furnace

* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:within 30mm of the effective working area,the temperature difference between any two points is not more than 0.5℃,the radius is within 14mm,and the temperature difference between any two points of the same section is not more than 0.25℃.
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 1

DTL-600BG Precious metal thermocouple calibration furnace

* Furnace inner size:40 mm ×600 mm
* Temperature range: 300℃~1200℃
* Thermal field distribution:The highest temperature point deviates from the geometric
center of the furnace:≤20mm, Temperature gradient:≤0.4℃/10 mm.
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 2

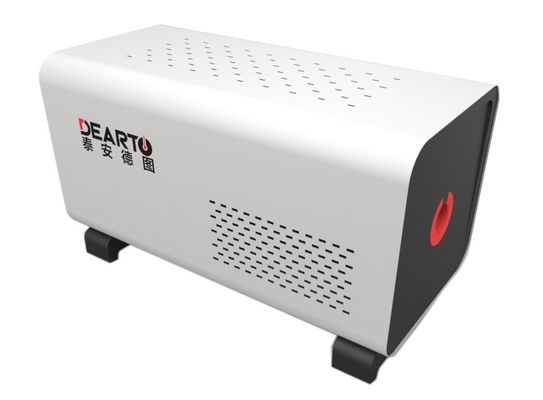

DTL-300G Short thermocouple calibration furnace

* Furnace inner size:40 mm x 300 mm
* Temperature range: 300℃~1200℃
* Temperature field index:the center of the temperature field deviates from the geometric center≤10mm,the axial temperature gradient: ≤0.4℃/10 mm
DTL-T Thermocouple annealing furnace
* Furnace inner size:φ40mmx1000mm
* Scope of use:Thermocouple annealing
* Temperature field index:one end of the temperature field is less than 100mm from the furnace mouth,and the uniformity of the temperature field of 400mm is less than±20°C
* Dimensions:1010×305×365(mm)
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 3
Patent & Software copyright certificate
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 4
Patent certificate of thermocouple calibration furnace
220V 50HZ Power Supply DTL-600 Series Precious Metal Thermocouple Calibration Furnace 5
Software copyright certificate of thermocouple calibration furnace
