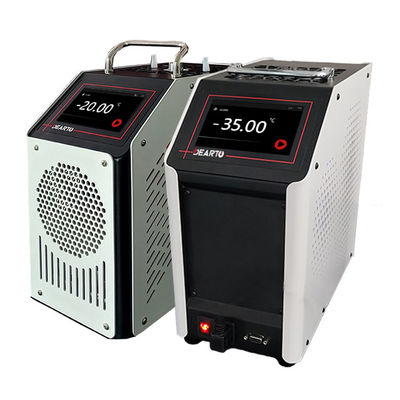

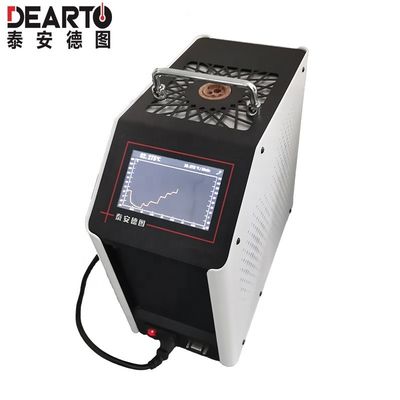

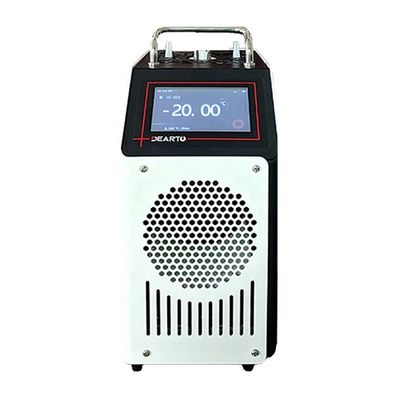

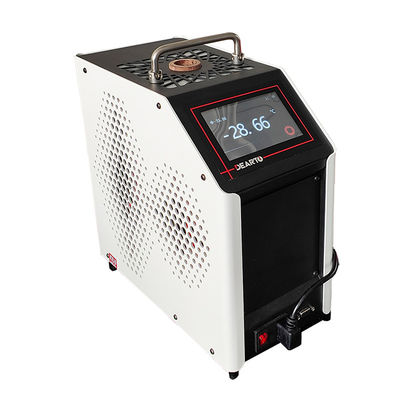

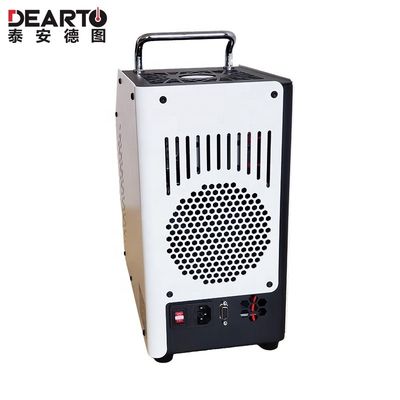

OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator

OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator

Large Image :  OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,400.00 - $2,000.00/sets
Packaging Details: Carton Packing
Supply Ability: 1000 Unit/Units per Month
Contact Now

OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Display Resolution: 0.01℃ Stability: ±0.1℃/30min
Dimension Of Box Body: 280*165*280 Color: White
Power Supply: 110/220VAC Weight: 9KG

Product Overview
DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 0
▶ Accurate temperature control and uniform temperature field
▶ Beautiful, portable and lightweight, convenient for on-site verification.
▶ Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
▶ Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
▶ Multi-point calibration interpolation calibration technology for more accurate temperature control
▶ RS-232 interface for data export
▶ Temperature curve, volatility, deviation synchronous display, intuitive reading
Operation interface
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 1
Setting interface
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 2
PID settings interface
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 3
Auto-tuning interface

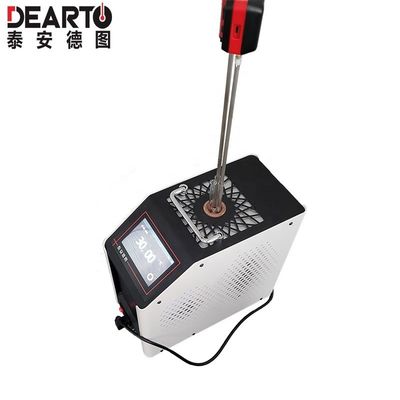

Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 4
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 5
Product Paramenters
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10   When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤0.2℃
Axial uniformity
Within 40mm from the bottom of the well ≤0.8 ℃
Temperature fluctuation
±0.15℃
Well depth
170mm
Dimensions
330 x 170x 320 mm
Power supply
110/220V,60/50Hz
SIMILAR PRODUCTS
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 6
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 7
OBM Supported Portable -35-150 C Low Temperature Dry Isothermal Block Type Calibrator 8
