* Intelligent touch screen control;
* Display temperature difference,fluctuation data;
* Automatic segment temperature control,rapid cooling/heating "0"overshoot;
* Micro-circulation technology;

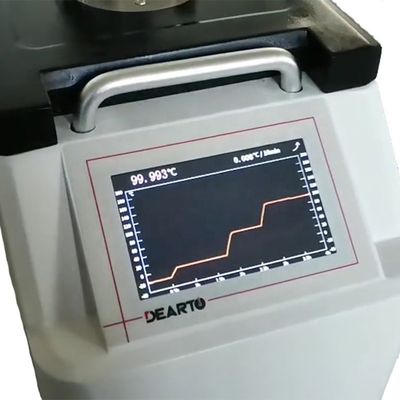

* Temperature curve display. ETC
|
Product Details:
|
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM, ODM | Display Resolution: | 0.001℃ |
| Dimensions(mm): | 500*220*610 | Control Method: | Touch |
| Power Supply: | 220/110V,50/60Hz | Working Medium: | Special Oil |
| Net Weight: | 25kg |
Product name | Intelligent micro refrigerated/heated thermostatic bath | ||||||||||
Model | DTS-10BG | DTS-20BG | DTS-30BG | DTS-95BG | DTS-125BG | DTS-40BG | |||||
Temperature range | -10℃~180℃ | -20℃~150℃ | -30℃~150℃ | -40℃~95℃ | -40℃~125℃ | -40℃~150℃ | |||||
-20℃~180℃ | -40℃~180℃ | ||||||||||
Control method | Touch screen | ||||||||||
Display resolution | 0.001℃ | ||||||||||
Temperature fluctuation | ≤±0.02℃/10min（0℃） | ||||||||||
Temperature uniformity | ≤0.02℃（0℃） | ||||||||||
Max heating rate | 7℃/min（25℃） | ||||||||||
Max cooling rate | 8℃/min（25℃） | ||||||||||
Work area size | Φ80×280 mm / Φ100×280 mm | ||||||||||
Dimensions（mm） | 500(L)×220(W)×610(H) | ||||||||||
Working medium | Special medium | Anhydrous alcohol | Special medium | ||||||||
Remarks | Flange size can be customized according to customer needs | ||||||||||
