Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg

Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg

Large Image :  Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Certification: CE / ISO9001
Model Number: DTS-BG Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,750.00 - $6,000.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg

Description
Warranty: 1 Year Customized Support: OEM, ODM
Power: Electronic Display Resolution: 0.001℃
Dimensions(mm): 500*220*610 Control Method: Touch
Power Supply: 220/110V,50/60Hz Working Medium: Special Oil
Color: White Weight: 25kg

Product Overview
DTS-BG ultra-portable intelligent thermostatic bath is a high-precision automatic control temperature verification device,which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy.Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
* Compact dimensions;
* Intelligent touch screen control;
* Display temperature difference,fluctuation data;
* Automatic segment temperature control,rapid cooling/heating "0"overshoot;
* Micro-circulation technology;
* Temperature curve display. ETC
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 0
Operation interface
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 1
Starting interface
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 2

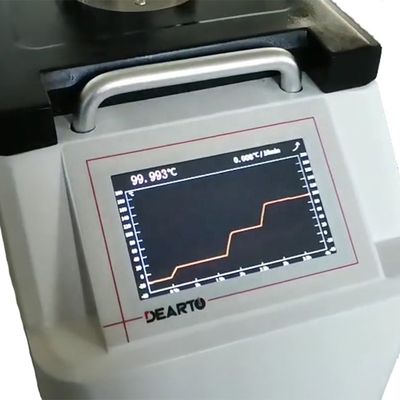

Curve display interface
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 3
Setting interface
PRODUCT SPECIFICATIONS
Product name
                                Intelligent micro refrigerated/heated thermostatic bath
Model
DTS-10BG
DTS-20BG
DTS-30BG
DTS-95BG
DTS-125BG
DTS-40BG
Temperature range
-10℃~180℃
-20℃~150℃
-30℃~150℃
-40℃~95℃
-40℃~125℃
-40℃~150℃
-20℃~180℃
-30℃~180℃
-40℃~180℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation
≤±0.02℃/10min（0℃）
Temperature uniformity
≤0.02℃（0℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
5℃~10℃/min（20℃）
Work area size
Φ80×280 mm / Φ100×280 mm
Dimensions（mm）
500(L)×220(W)×600(H)
Working medium
Special medium
 Anhydrous alcohol
Special medium
Remarks
Flange size can be customized according to customer needs
Certifications
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 4
Patent certification
Touch Screen PID Control Portable Cryostat for Temperature Calibration -40C to 180C 25kg 5
CE certification
