White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600

White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600

Large Image :  White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTS-BG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,000.00 - $8,000.00/sets
Packaging Details: Bubble wrap & Carton Packing
Supply Ability: 1000 Set/Sets per Month
Contact Now

White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600

Description
Warranty: 1 Years Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Display Resolution: 0.001℃
Dimensions(mm): 500*220*600 Control Method: Touch
Power Supply: 110/220V,50/60Hz Working Medium: Special Oil
Color: White Weight: Appr.25kg

Product Overview

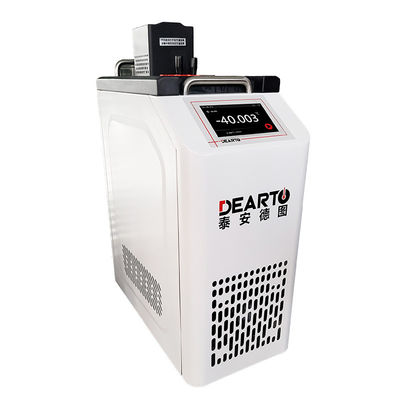

DTS-BG ultra-portable intelligent thermostatic oil bath

DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 0
-Compact dimensions;
-Intelligent touch screen control;
-Display temperature difference,fluctuation data;
-Automatic segment temperature control,rapid cooling/heating "0"overshoot;
-Micro-circulation technology;
-Temperature curve display. ETC.
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 1
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 2

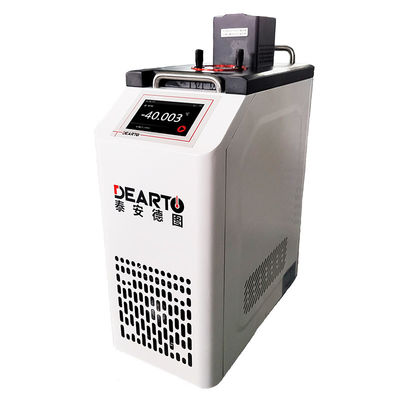

Front elevation
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 3

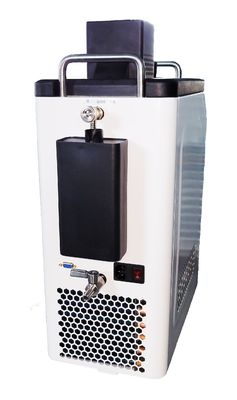

Back elevation
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 4

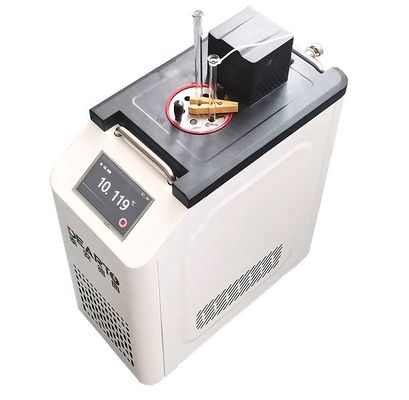

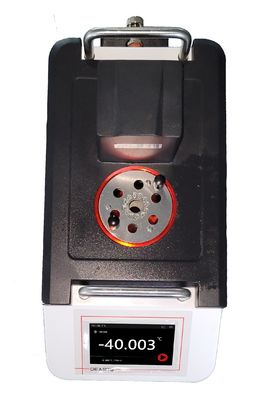

Vertical view
Operation interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 5
Starting interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 6

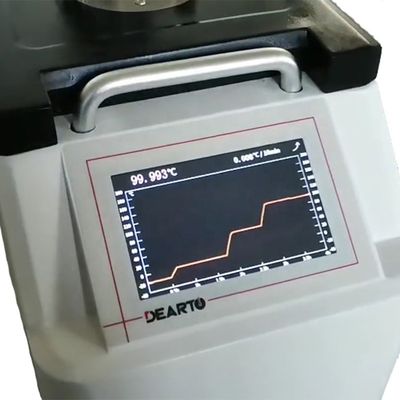

Curve display interface
White Smart Portable High and Low Temperature Oil Refrigerant Thermostat Dimensions mm 500*220*600 7
Setting interface
PRODUCT SPECIFICATIONS
Product name
                                Intelligent micro refrigerated/heated thermostatic bath
Model
DTS-10BG
DTS-20BG
DTS-30BG
DTS-95BG
DTS-125BG
DTS-40BG
Temperature range
-10℃~180℃
-20℃~150℃
-30℃~150℃
-40℃~95℃
-40℃~125℃
Customized
-20℃~180℃
-40℃~150/180℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation
≤±0.02℃/10min（0℃）
Temperature uniformity
≤0.02℃（0℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
5℃~10℃/min（20℃）
Work area size
Φ80×280 mm
Dimensions（mm）
500(L)×220(W)×600(H)
Working medium
Special medium
 Anhydrous alcohol
Special medium
Remarks
Flange size can be customized according to customer needs
