280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator

280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator

Large Image :  280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Certification: ISO9001
Model Number: DTG-140G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,200.00/units 1-4 units
Packaging Details: Bubble wrap & Carton Packing
Contact Now

280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator

Description
Warranty: 1 Year Classification: Laboratory Thermostatic Devices
Customized Support: OEM, ODM, OBM Display Resolution: 0.01℃
Stability: ±0.1℃/30min Dimension Of Box Body: 280*165*280
Power Supply: 110/220VAC Weight: 9kg

Product Overview
DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -20 ℃ to 140 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 0

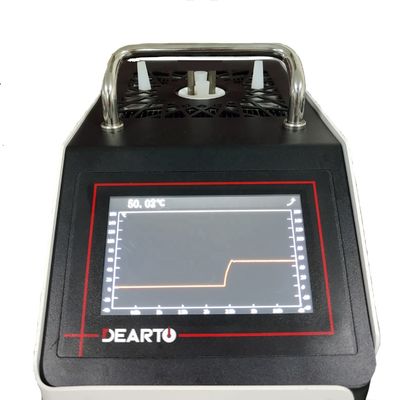

Operation interface
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 1
Setting interface
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 2
PID settings interface
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 3
Auto-tuning interface

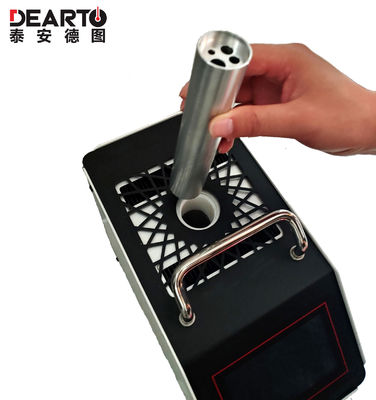

Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 4
280*165*280 Dimension Box Body Self-Control PID -20 to 140 C Low Temperature Calibrator 5
Product Paramenters
Model
DTG-140G

Temperature range
-20℃~140℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10   When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤±0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.8 ℃
Well depth
170mm
Dimensions
330 x 170 x 320 mm
Power supply
220/110V,50/60Hz
