Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Power: | Electronic | Display Resolution: | 0.001℃ |
| Control Method: | Touch | Power Supply: | 220V/110V,50/60Hz |
| Working Medium: | Silicone Oil | Color: | White |

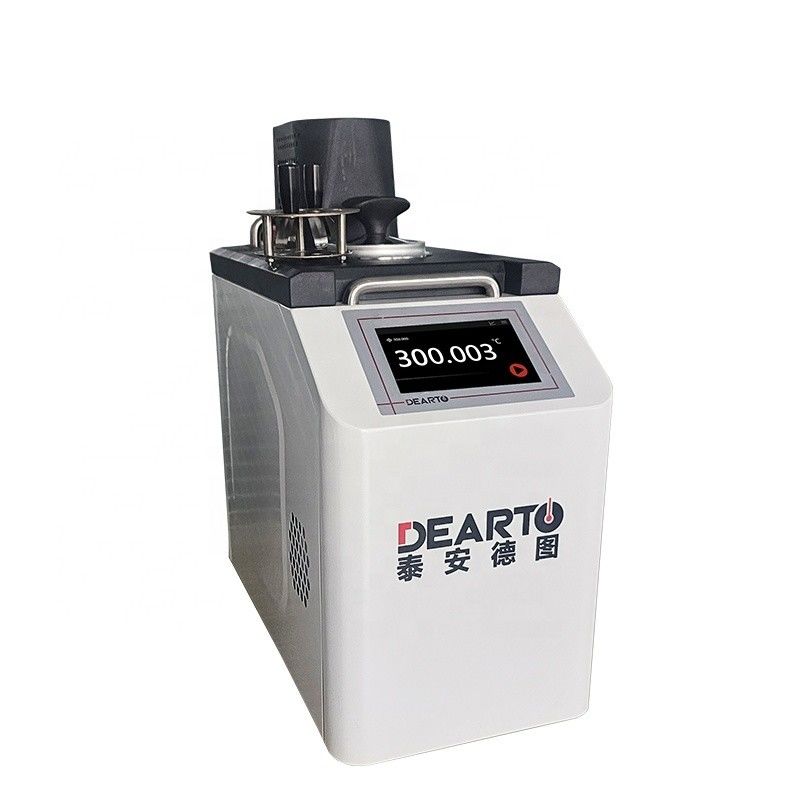

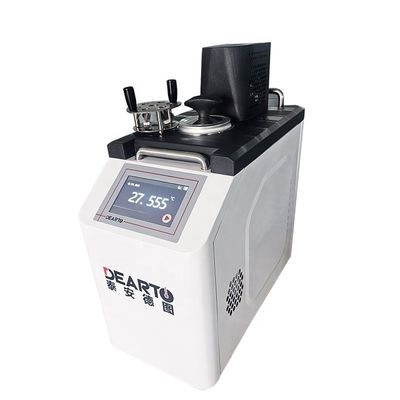

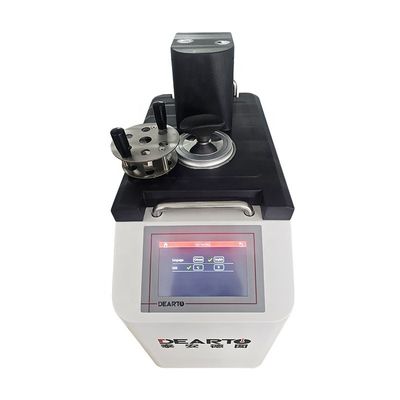

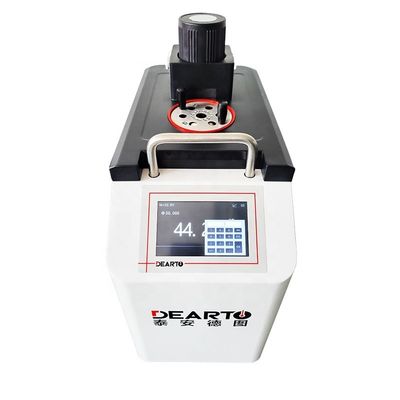

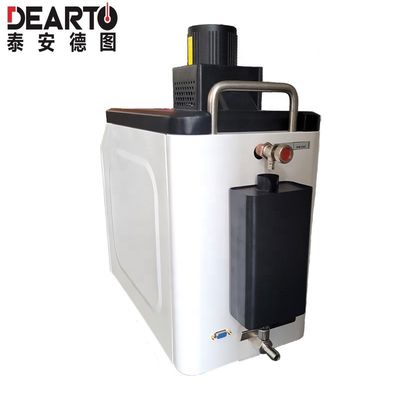

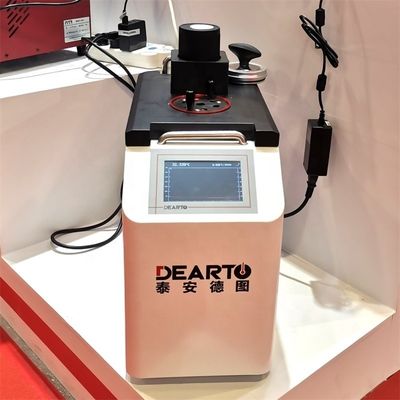

Product name | Intelligent micro heating thermostatic calibration oil bath | ||||||
Model | DTS-180BG | DTS-300BG | |||||
Temperature range | 60℃~180℃ | 60℃~300℃ | |||||
Control method | Touch screen | ||||||
Display resolution | 0.001℃ | ||||||
Temperature fluctuation(10min) | ≤±0.02℃(60℃) ≤±0.02℃(100℃)≤±0.03℃(200℃)≤±0.035℃(300℃) | ||||||
Temperature uniformity | ≤0.01℃ (60℃) ≤0.01℃ (100℃) ≤0.02℃ (200℃)≤0.02℃ (300℃) | ||||||
Heating rate | 6.5℃~11.5℃/min | ||||||
Cooling rate | 1.5℃~5℃/min（Natural cooling） | ||||||
Work area size | Φ80×280 / Φ100×280 mm | ||||||
Dimensions（mm） | 490(L)×220(W)×480(H) | ||||||
Working medium | Silicone oil | ||||||
Remarks | Flange size can be customized according to customer needs | ||||||
