High Accuracy Portable Multifunction Process Signal Calibrator for Industrial Testing

Large Image : High Accuracy Portable Multifunction Process Signal Calibrator for Industrial Testing

Product Details:

Place of Origin:	Shandong, China
Brand Name:	DEARTO
Certification:	ISO9001
Model Number:	DTEL-15G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,000.00/sets 1-2 sets
Packaging Details:	Carton Packing
Supply Ability:	500 Piece/Pieces per Month

Contact Now

High Accuracy Portable Multifunction Process Signal Calibrator for Industrial Testing

Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Power Supply:	Rechargeable Batteries	Volume:	220 X 107 X 37mm
Weight:	580g

Products Description

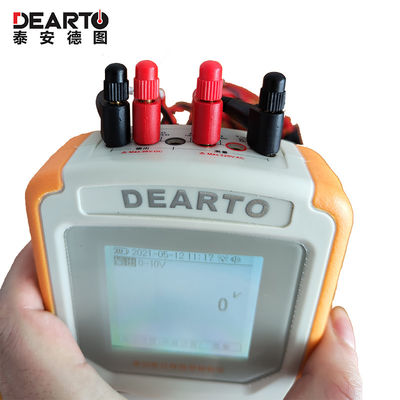

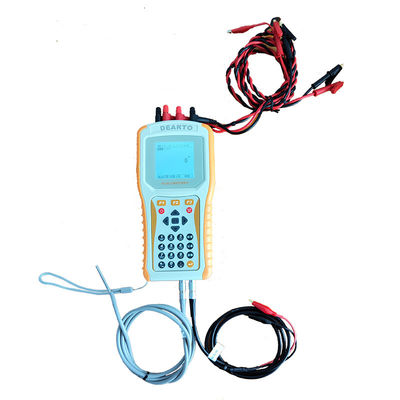

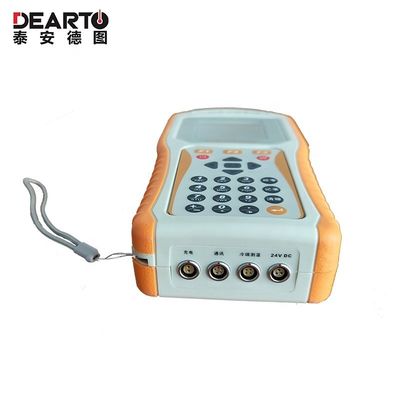

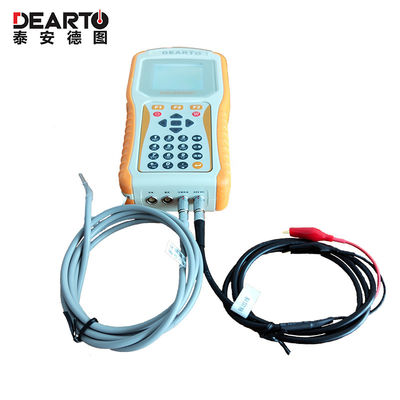

DTEL-15G multi-function calibrator is a portable field calibrator powered by a large-capacity high-performance polymer rechargeable battery. It can be connected to an external pressure module. It is easy to operate, powerful, stable, and highly accurate. It is a very cost-effective. High thermal comprehensive calibration instrument.

Functional characteristics

1. This calibrator conforms to the following national regulations:
"JJG1664-2017 Calibration Specification for Temperature Display"
"JJG617-1996 Verification Regulation of Digital Temperature Indicating Regulator"
"JJG951-2000 Analog Temperature Indication Regulator Verification Regulations"
"JJG874-2007 Verification Regulation of Temperature Indication Controller"
"JJG74-2005 Industrial Process Measurement Recorder (Electronic Potentiometer, Automatic Balance Bridge) Verification Regulations"
"JJF1183-2007 Calibration Specification for Temperature Transmitter"
"JJG119-2018 Laboratory pH (Acidity) Meter Verification Regulations"
"JJF1547-2015 Online pH Meter Calibration Specification"
2. Simultaneous output and measurement of various standard signals such as V, mV, mA, Ω, Hz, and accurate simulation and
measurement of various thermocouple (TC) and various thermal resistance (RTD) temperature signals;
3. The host has a built-in pH (acidity) meter verification function;
4. The RTD measurement has a custom PRT function. The input platinum resistance corresponding to R0, A, B, C and other parameters
can be used as a high-precision thermometer;
5. It can verify various secondary instruments such as temperature instruments, transmitters, recorders, etc., and has the
function of analog transmitters;
6. 4 ~ 20mA output and measurement can directly carry out 24V power distribution, and can provide 24VDC independent power supply
mode;
7. When verifying that the transmitter measures its loop signal, it can visually display the current parameters and corresponding
temperature or pressure parameters without conversion;

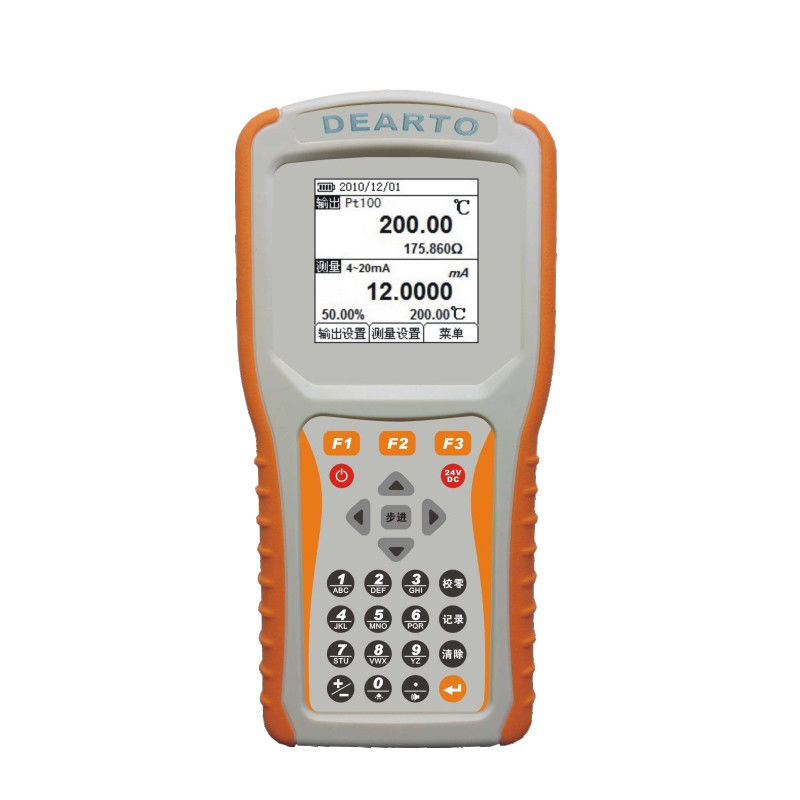

8. Large-screen backlit LCD screen, English / Chinese operation menu, complete functions, convenient for the detection and
calibration of all on-site thermal signals;
9. The high-precision grade of electrical signal is 0.01, and the accuracy of factory control is ± 0.005% FS;
10. Good stability, the internal temperature system of the instrument is automatically corrected, and the lower limit temperature
coefficient is ± 0.0003% FS / ℃;
11. Highest seven digits display, high resolution of output and measurement (mV resolution: 1μV, Ω resolution: 1mΩ);
12. Compact size, easy to carry, use anti-shock and anti-fall silicone shell to avoid accidental damage;
13. Fully enclosed thin film touch button, long service life of 500,000-1 million times;
14. Support two-wire, three-wire, and four-wire output and measurement of Ω (thermal resistance) signals;
15. All signals can be automatically stepped and ramped, and any step (ramp) point and step (ramp) time can be set;
16. Real-time recording of on-site detection data can be achieved to realize paperless recording function;
17. External high-precision cold junction compensation probe can perform manual or automatic cold junction temperature
compensation and setting;
18. Adopt large-capacity high-performance polymer rechargeable batteries, continuous working time of more than 10 hours;
19. Standard gold-plated test leads, less contact potential and contact resistance, to ensure high-precision calibration;
20. Five-year warranty of the host, free lifetime accuracy correction, and lifetime service guarantee;
21. Volume: 220 × 107 × 37mm, weight: 580g.

Product Paramenters
