110-230VAC Triple Channel High Accuracy Temperature Measurement Precision Thermometer

Large Image : 110-230VAC Triple Channel High Accuracy Temperature Measurement Precision Thermometer

Product Details:

Place of Origin:	Shandong, China
Brand Name:	DEARTO
Model Number:	DTMC-mk301G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,000.00/sets 1-4 sets
Packaging Details:	Carton Packing
Supply Ability:	200 Set/Sets per Month

Contact Now

110-230VAC Triple Channel High Accuracy Temperature Measurement Precision Thermometer

Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Resolution Ratio:	0.0001℃	Module Weight:	2.5kg
Power Supply:	110~230VAC

Products Description

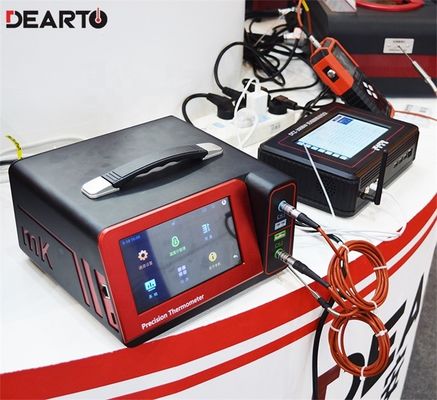

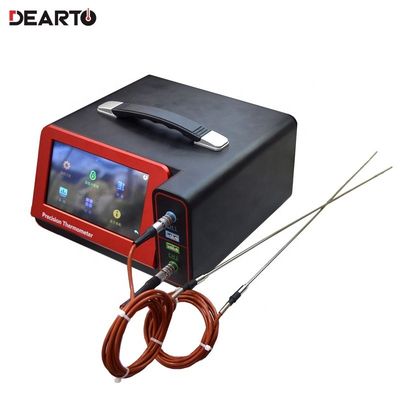

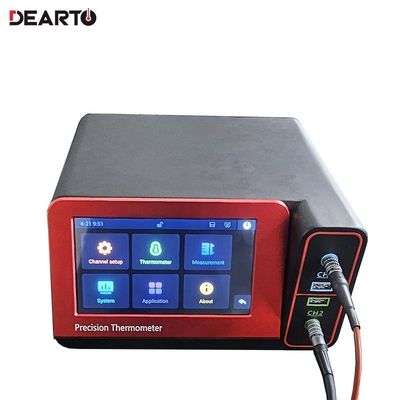

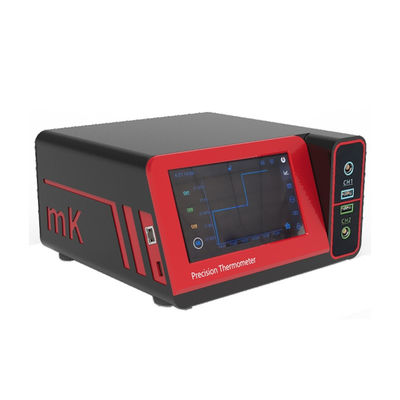

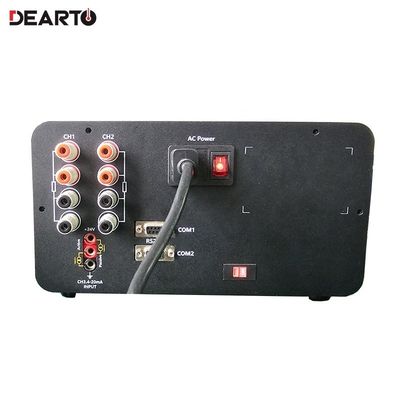

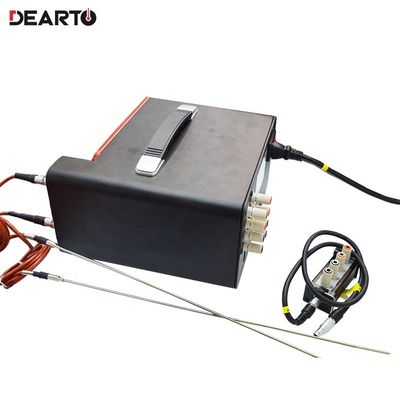

DTMC-mK301 high-precision thermometer is a new generation of multi-channel super thermometer specially developed for the field of temperature measurement calibration and precision temperature measurement. It highly integrates high-accuracy electrical measurement technology, intelligent interaction technology, and industry needs, and comprehensively solves the measurement and calibration needs of laboratory and field temperature sensors.
The DTMC-mK301 can measure RTDs, thermocouples, thermistors, temperature transmitters, humidity sensors, DC current and DC resistance, and DC voltage signals. Support ITS-90 temperature scale and ITC60751 standard, built-in thermal conversion software,support sensor parameter management and intelligent sensor management function, in electric power, petrochemical, measurement,metallurgy, biology, pharmaceutical, scientific research work has a wide range of uses, it is ideal for temperature measurement calibration field.

Functional characteristics

▶ Support double standard platinum resistance(SPRT), double standard thermocouple(STC);

▶ Support for the editing and configuration of the parameters of TC,PRT and thermistor sensor;

▶ Support resistance (Pt / Cu / Ni) (Pt 25 / Pt 100 / Cu X / NiX);

▶ Support for thermocouple (K / N / J / E / T / R / S / B / We3 / We5);

▶ Support for thermistor (0-400K);

▶ Support temperature transmitter (0-20 mA / 4-20 mA);

▶ Provide historical data, statistical data, curve data and other data display forms;

▶ Support voltage, resistance, temperature and other data format storage and output;

▶ The RTD supports automatic current switching, eliminating the EMF thermal potential error;

▶ RTD supports two-line, three-line and four-line sensors;

▶ Support for SCPI communication protocol (RS232 / WLAN);

▶ Provide 8G large-capacity storage space for data storage

▶ 7-inch industrial-grade color touch-screen display

Product Paramenters

Number of channel	3 input channels (CH 1 / CH2 / CH3)
Resolution	0.0001℃
Accuracy	7ppm(For SPRT at 0℃)
Sampling rate	up to 1S once
Temperature sensor	Resistance (Pt / Cu / Ni) (Pt 25 / Pt 100 / Cu X / NiX); Thermocouple (K / N / J / E / T / R / S / B / We3 / We5); Thermistor (0-400K); Temperature transmitter (0-20 mA / 4-20 mA)
Data storage	Built-in 8G storage space,can be connected to an external U disk
Operation display	7 inch HD touch screen
Communication protocol	RS232 / WLAN
Overall size	270mm(L) x 260mm(W) x 142mm(H)
Weight	2.5Kg
