Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic

Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic
Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic

Large Image :  Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Model Number: DTD-02G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,900.00/sets 1-4 sets
Packaging Details: Carton Packing
Supply Ability: 500 Set/Sets per Month
Contact Now

Customized Support OBM DTD-02G Glass Liquid Thermometer Auxiliary Reading Device Electronic

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Power: Electronic Power Supply: AC 110-220V

Products Description

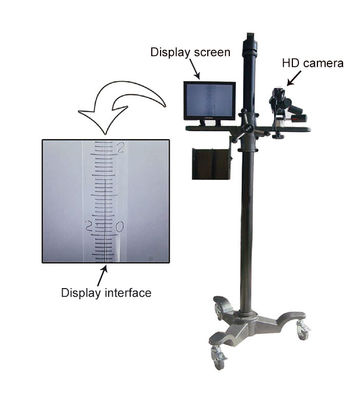

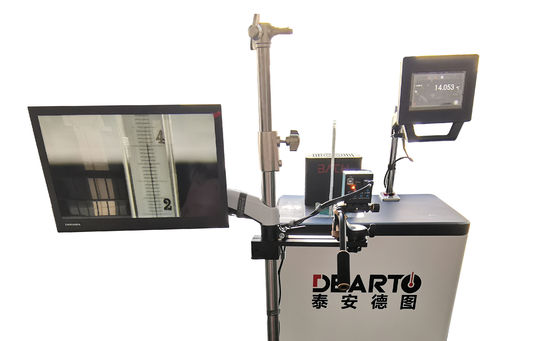

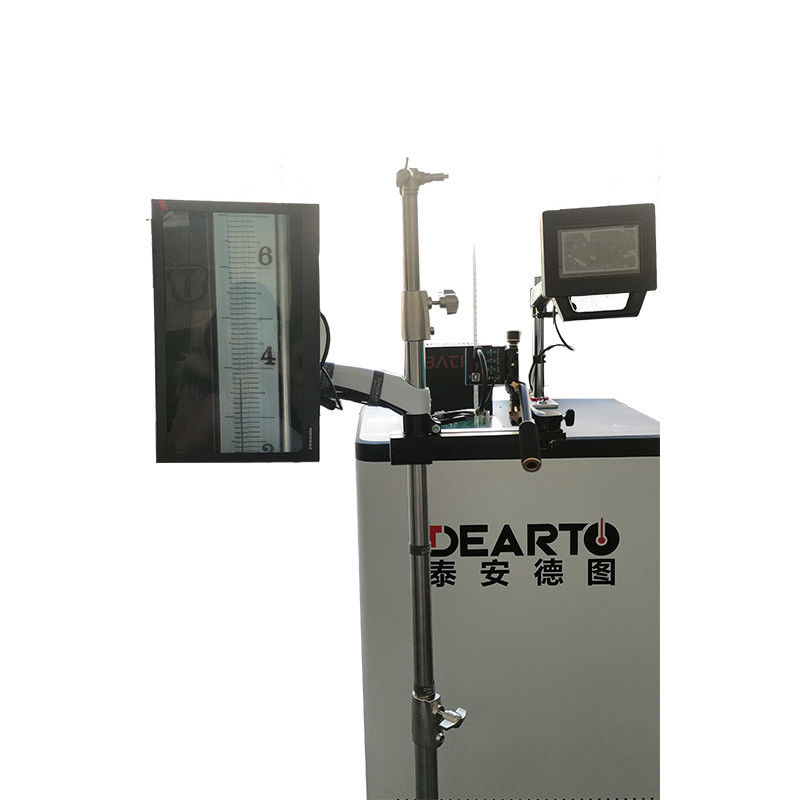

DTD-02G glass liquid thermometer reading device is a reading device for detecting glass liquid thermometer. It uses CCD technology to display the thermometer score on the monitor, which can enlarge the score by more than 20 times and can also be used for other images magnified observation.
Functional characteristics
Adopt high-power optical lens and magnifying expansion port, the magnification is large,
the image is clear, and the reading is accurate; it greatly reduces the eye fatigue caused by the long observation time of the inspector and avoids the occurrence of gross errors.
Ø The observation field is large, which can be observed by one or more people at the same time.
Ø The magnification can reach more than 20 times.
Ø The image acquisition adjustment is sensitive and practical.
Ø It can replace reading telescope which has been used for more than 30 years. The whole set of equipment includes observation and display parts, and the equipment is sensitive to adjustment and easy to move.
Ø 15-inch industrial-grade high-performance LCD screen, reasonable size, compact structure, easy to place.
Ø The display adopts high-strength steel shell, which can provide good protection; professional-grade chips and processing technology to ensure high image quality; high reliability and stability, especially suitable for harsh industrial environments.
Ø Use industrial camera: DSP-digital signal processing technology, make the image clearer and more delicate, the outline is clearer, the signal-to-noise ratio and the contrast are stronger.
Product Paramenters
Effective working distance
(200~3000)mm
Height adjustment range
(1000~1800)mm
Lens specifications
2/3”C 75mm Prime focus mega HD lens
Camera
HD 800-line color CCD industrial camera
Display
15-inch LCD display, resolution:≥1024 x 768
FAQ
Whatsapp：0086 13605384645 same with Wechat
Skype：Taian Dearto
E-mail:tadt17@dearto.cn
