* Intelligent touch screen control;
* Display temperature difference,fluctuation data;
* Automatic segment temperature control,rapid cooling/heating "0"overshoot;
* Micro-circulation technology;

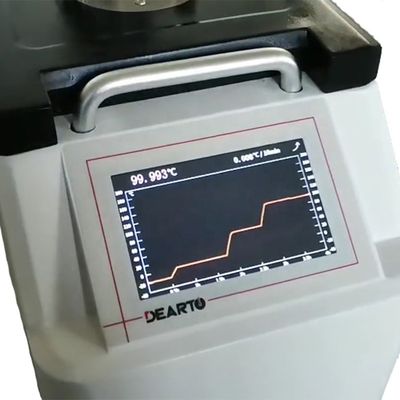

* Temperature curve display. ETC
|
Product Details:
|
| Warranty: | 1 Year | Classification: | Laboratory Thermostatic Devices |
|---|---|---|---|
| Customized Support: | OEM | Display Resolution: | 0.001℃ |
| Dimensions(mm): | 500*224*600 | Control Method: | Touch |
| Power Supply: | 220/110V,50/60Hz | Working Medium: | Special Oil |
| Net Weight: | Appr.23kg |
Product name | Intelligent micro refrigerated/heated thermostatic bath | ||||||||||
Model | DTS-10BG | DTS-20BG | DTS-30BG | DTS-95BG | DTS-125BG | DTS-40BG | |||||
Temperature range | -10℃~180℃ | -20℃~150℃ | -30℃~150℃ | -40℃~95℃ | -40℃~125℃ | -40℃~150℃ | |||||
-20℃~180℃ | -30℃~180℃ | -40℃~180℃ | |||||||||
Control method | Touch screen | ||||||||||
Display resolution | 0.001℃ | ||||||||||
Temperature fluctuation | ≤±0.02℃/10min（0℃） | ||||||||||
Temperature uniformity | ≤0.02℃（0℃） | ||||||||||
Heating rate | 6.5℃~11.5℃/min | ||||||||||
Cooling rate | 5℃~10℃/min（20℃） | ||||||||||
Work area size | Φ80×280 mm / Φ100×280 mm | ||||||||||
Dimensions（mm） | 500(L)×220(W)×600(H) | ||||||||||
Working medium | Special medium | Anhydrous alcohol | Special medium | ||||||||
Remarks | Flange size can be customized according to customer needs | ||||||||||
