Product Details:
|
| Warranty: | 1 Years | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Display Resolution: | 0.001℃ | Emissivity: | > 0.995 |
| Dimensions(mm): | 320*195*275 | Power Supply: | 110-220V AC, 50Hz |
| Color: | Blue | Net Weight: | Appr. 9 Kg |

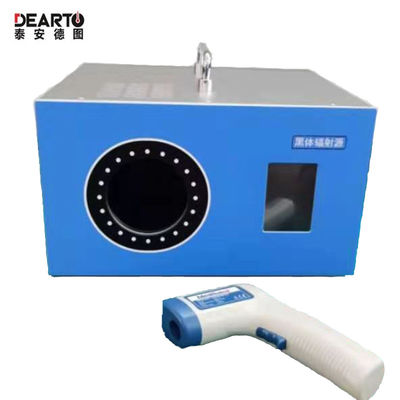

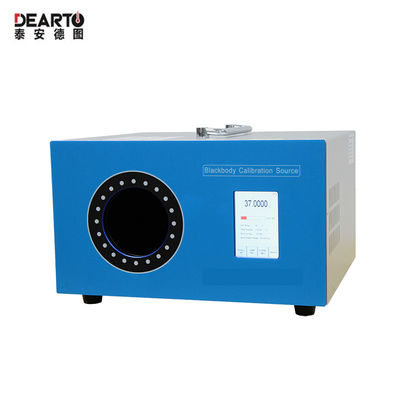

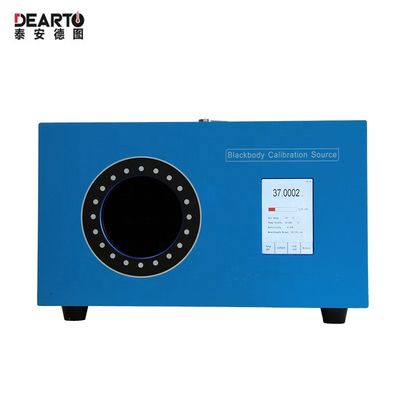

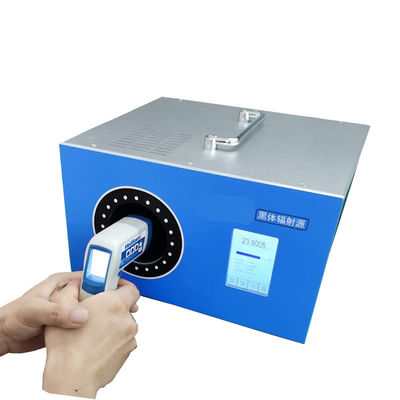

With isothermal cavity, the DTR-20 is a portable blackbody calibration source utilizing a digital indicating temperature ambient 20℃ to 50℃ (68F to 122F). The 80 mm diameter end closed tube is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provide readout.
APPLICATION
l Calibrate ear infrared thermometer
l Calibrate forehead infrared thermometer
l Calibrate thermal camera
l Calibrate infrared screening instrument
l Calibrate infrared sensor
l The isothermal cavity
l Better than 0.995 emissivity
l 80mm diameter aperture
l 0.05°C high stability
l Calibrate from 20°C to 50°C
l Built-in temperature correction function
l Portable and easy operate
| Temperature Range | 20℃ to 50℃ (68F to 122F) |
| Aperture size | 80 mm diameter |
| Emissivity | > 0.995 |
| Cavity type | Isothermal Cavity |
| Display resolution | 0.001℃ |
| Control stability | ± 0.05℃ after 10 minutes |
| Blackbody uniformity | ± 0.05℃ |
| Heat cavity shape | End closed tube |
| Heat up time | 10 min. from amb. to 20℃, 10 min. from amb. to 50℃ |
| Control method | Digital PID controller with readout |
| Temperature sensor | AAA Precison platinum RTD |
| Power supply | 110-220V AC, 50Hz, 350W |
| Interface | RS232 |
| Dimension | 320 mm(D) x 195 mm(W) x 275mm(H) |
| Net weight | Appr. 9 kg |
