Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera

Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera
Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera

Large Image :  Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera

Product Details:
Place of Origin: Shandong, China
Brand Name: DEARTO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,000.00 - $6,000.00/pieces
Packaging Details: Carring case
Supply Ability: 400 Set/Sets per Month
Contact Now

Emissivity 0.99 Tubular Black Body Radiation Source for Thermal Image Camera

Description
Warranty: 1 Years Customized Support: OEM, ODM, OBM
Display Resolution: 0.01℃ Emissivity: >0.99
Power Supply: 110-220V AC, 50Hz

Products Description

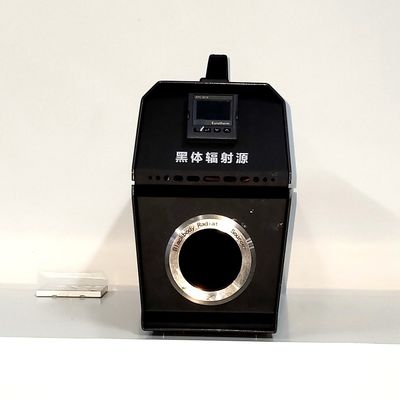

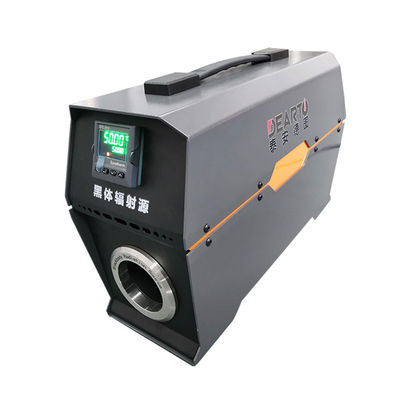

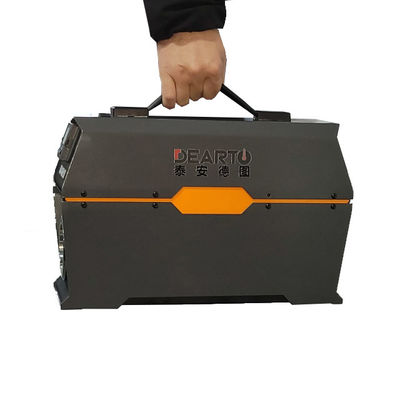

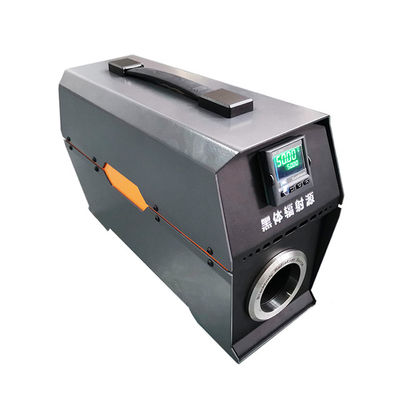

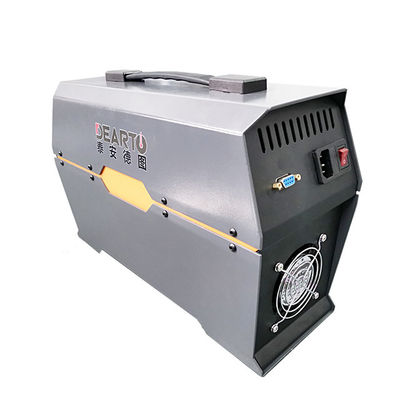

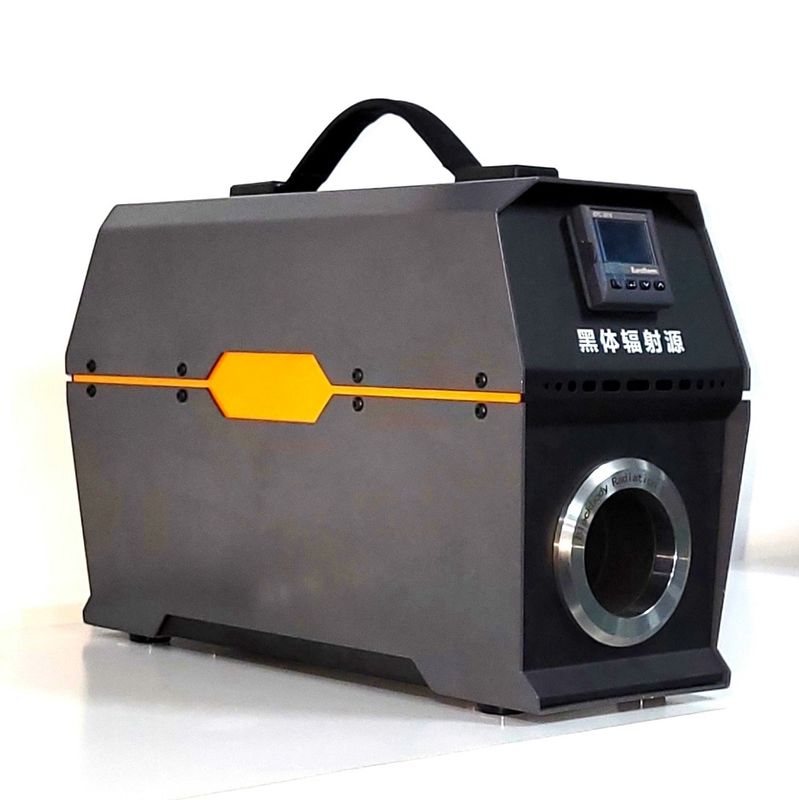

DTR-30HG type tubular blackbody radiation source is a small and cost-effective blackbody designed for human body temperature measurement application, infrared NETD calibration and response rate test. It is specially used for correcting the real-time relative temperature drift of infrared temperature rapid screening instrument, infrared thermal imaging temperature measurement alarm system and other products. The product adopts black body and integrated temperature control structure, working temperature range of 30℃ ~ 50℃. It is optional to communicate with computer through RS232. High emissivity, good stability, low uncertainty and easy operation.
Main features
* External novel design, LED screen display, simple operation.
* Isothermal black body cavity, only one cavity, the cavity radiation is evenly distributed with the spectrum, the cavity emittance above 0.99.
* Automatic temperature control method, safe and reliable, fast heating speed and good temperature stability.
* Easy operation, small volume and light weight, easy to carry, not only suitable for calibration in the laboratory, but also for calibration work on site.
* Use double-row numbers to display the measurement value and set value parameters setting and other new technologies, high precision and high, multifunctional, and strong anti-interference ability.
Product Paramenters
Temperature range
30 ºC~50 ºC (The set temperature must be at least 2 ºC higher than the ambient temperature.)
Black body cavity diameter
60 mm
Black body cavity emissivity
ε= 0.995
Temperature controller
EPC3016, standby RS232 port
Radiation temperature uncertainty
≤0.08ºC
Temperature stability
≤0.01ºC/30 min
Temperature control ambient temperature coefficient
±0.01 ºC /10 ºC(Typical value)
Ambient temperature
10 ºC ~32ºC, no condensation
Power supply
50Hz，220V ± 10%，100W
