Product Details:
|
| Operation Temperature: | 0℃~50℃(32-42℃) | Resolution: | 0.001℃ |
|---|---|---|---|
| Temperature Stabilization: | 0.01℃/10min | Power Supply: | 220VAC |
Product overview:

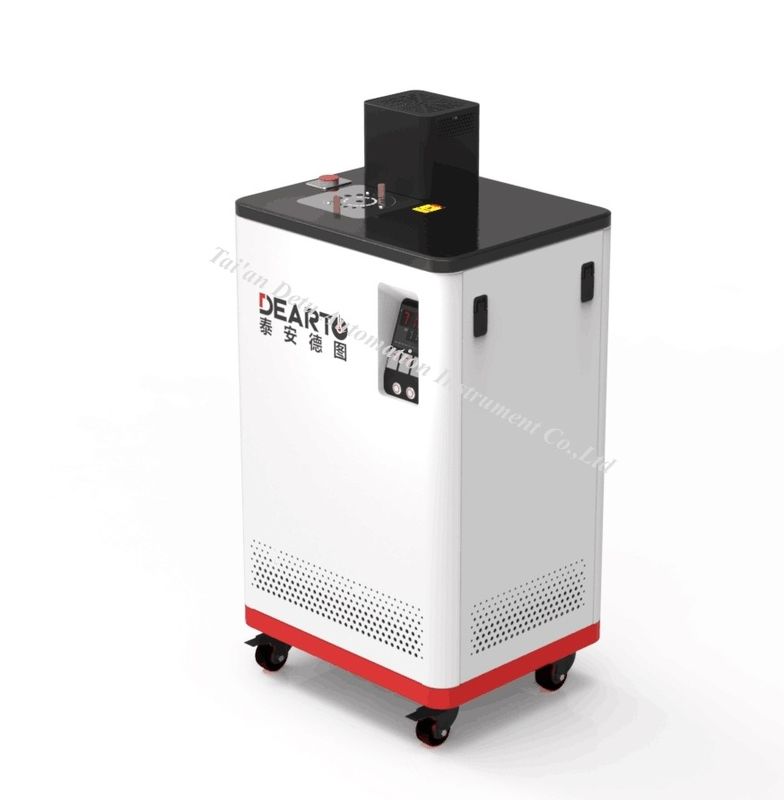

Calibration device for ear/forehead thermometer DTME-50 mainly used to calibrate the infrared ear thermometer, infrared forehead thermometer and other non-contact infrared thermometers. This product is a high-precision self-control digital display temperature calibration device. It has the characteristics of good temperature stability, uniform temperature field, high temperature control accuracy, low noise, good reliability and long life. This device adopts PID temperature adjustment to realize automatic temperature control, compact structure, convenient operation and intuitive reading.
Technical index
| Model | DTME-50 |
| Operation Temperature | 0℃~50℃(32-42℃) |
| Cavity | spherical |
| Resolution | 0.001℃ |
| Temperature stabilization | 0.01℃/10min |
| Temperature uniformity | ≤0.02℃ |
| Transient time | <10min |
| Cavity diameter | Φ10mm/Φ50mm |
| Emissivity | Precede 0.999 |
| Working medium | Antifreeze |
| Ambient temperature | 15-30℃ |
| Power supply | 220V |
| Power | 2KW |
Product feature

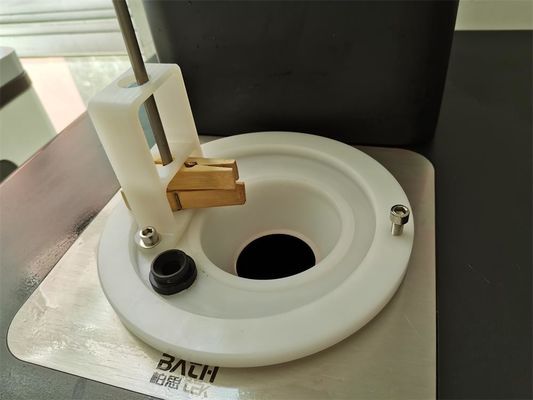

Ø Spherical black body radiation source with a high emissivity of 0.998.
Ø The opening is 50mm, which meets the calibration requirements of most D: S thermometers.
Ø With anti-condensation device, it can effectively prevent dew condensation and last long working hours.
Ø Good uniformity, good repeatability, and good temperature stability.
