Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply

Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply
Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply

Large Image :  Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply

Product Details:
Place of Origin: Shandong, China
Brand Name: Dearto
Certification: ISO9001
Model Number: DTM-3050BSG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,500.00 - $2,000.00/pieces
Packaging Details: Carring case
Supply Ability: 400 Set/Sets per Month
Contact Now

Emissivity Black Body Temperature Radiation Source 0.99 with 110-220V AC Power Supply

Description
Warranty: 1 Year Customized Support: OEM, ODM, OBM
Display Resolution: 0.01℃ Emissivity: 0.98 ± 0.01
Dimensions(mm): 250*140*180 Power Supply: 110-220V AC, 50Hz
Net Weight: 2kg

Products Description
DTM-3050BSG is a small size blackbody calibration source utilizing a digital indicating temperature ambient 30℃ to 50℃ (86F to 122F). A 70x70mm size ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provides readout.

APPLICATION
1. Ambient temperature compensation for thermal image camera

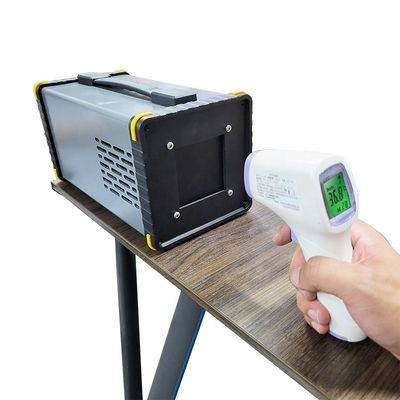

2. Test infrared thermometer
Main features
l 0.05℃ high stabillity
l Calibrate from 30℃ to 50℃
l Quickly heat up to 50℃ in 10 minutes
l Target size is 70mm x 70mm
l Built-in temperature correction function
l Quick and easy operate
l Portable and light weight
Product Paramenters
Temperature range
30 ºC~50 ºC (The set temperature must be at least 2 ºC higher than the ambient temperature.)
Black body cavity area
70 x 70 mm
Black body cavity emissivity
ε= 0.98±0.01
Temperature controller
EPC3016, standby RS232 port
Radiation temperature uncertainty
≤0.1ºC
Temperature stability
≤0.05ºC/30 min
Temperature control ambient temperature coefficient
±0.01 ºC /10 ºC(Typical value)
Ambient temperature
10 ºC ~32ºC, no condensation
Power supply
110/220V ± 10%，100W
